KF HV Stainless steel Y-inline valve – single acting、normally close
破真空阀/粗抽阀 Venting Valve/Pumping Valve
KF-HV-Stainless-steel-angle-valve-single-acting-normally-close.png)
| select | |||

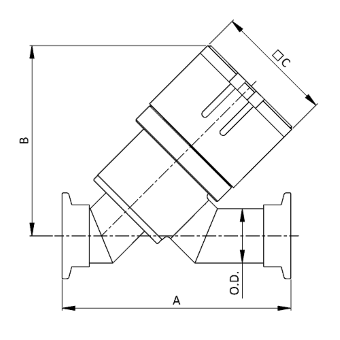

| Model No. | YVBHS-KF16-P | YVBHS-KF25-P | YVBHS-KF40-P |
| Parts No. | 30510911021A | 30511111021A | 30511311021A |
| A | 102 | 107 | 130 |
| B | 84.2 | 88.8 | 125 |
| C | 46.4 | 55.4 | 70.4 |
| O.D. | 19.1 | 25.4 | 38.1 |
| Select | Model No. | Parts No. | A | B | C | O.D. |
| YVBHS-KF16-P | 30510911021A | 102 | 84.2 | 46.4 | 19.1 | |
| YVBHS-KF25-P | 30511111021A | 107 | 88.8 | 55.4 | 25.4 | |
| YVBHS-KF40-P | 30511311021A | 130 | 125 | 70.4 | 38.1 |
规格
- 316Ti不锈钢波纹管
- 不锈钢机身
- 维护方便，波纹管和密封件更换快速
- 快速打开和关闭
阀门对照表
| 适用地区 | 法兰 | 电磁阀 | 传感器 | 波纹管 | 16 | 25 | 40 |
| 美国 | KF | √ | √ | 30510911021A | 30511111021A | 30511311021A |
