空心型磁性流体轴封
磁流体密封装置
_Non_Flange_Ferrofluid-Feedthrough.gif)

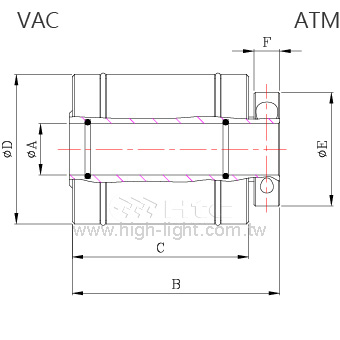

| select | |||||||
| Model No. | ACM0010CNR10 | ACM0020CNR10 | ACM0025CNR10 | ACM0030CNR10 | ACM0040CNR10 | ACM0050CNR10 | ACM0075CNR10 |
| Parts No. | 1000FF054001 | 1000FF054002 | 1000FF054003 | 1000FF054004 | 1000FF054005 | 1000FF054006 | 1000FF054007 |
| ØA | Ø10 +0.03/+0.01 | Ø20 +0.04/+0.02 | Ø25 +0.04/+0.02 | Ø30 +0.04/+0.02 | Ø40 +0.05/+0.02 | Ø50 +0.05/+0.02 | Ø75 +0.06/+0.03 |
| B | 78 | 82.5 | 88 | 93 | 96 | 98 | 115 |
| C | 64 | 68.5 | 74 | 79 | 80 | 82 | 96 |
| ØD | 48+0 / -0.02 | 58+0 / -0.03 | 63+0 / -0.03 | 73+0 / -0.03 | 88+0 / -0.04 | 98+0 / -0.04 | 137+0 / -0.04 |
| ØE | 34 | 44 | 49 | 54 | 69 | 79 | 109 |
| F | 10 | 10 | 10 | 10 | 12 | 12 | 15 |
| Select | Model No. | Parts No. | ØA | B | C | ØD | ØE | F |
| ACM0010CNR10 | 1000FF054001 | Ø10 +0.03/+0.01 | 78 | 64 | 48+0 / -0.02 | 34 | 10 | |
| ACM0020CNR10 | 1000FF054002 | Ø20 +0.04/+0.02 | 82.5 | 68.5 | 58+0 / -0.03 | 44 | 10 | |
| ACM0025CNR10 | 1000FF054003 | Ø25 +0.04/+0.02 | 88 | 74 | 63+0 / -0.03 | 49 | 10 | |
| ACM0030CNR10 | 1000FF054004 | Ø30 +0.04/+0.02 | 93 | 79 | 73+0 / -0.03 | 54 | 10 | |
| ACM0040CNR10 | 1000FF054005 | Ø40 +0.05/+0.02 | 96 | 80 | 88+0 / -0.04 | 69 | 12 | |
| ACM0050CNR10 | 1000FF054006 | Ø50 +0.05/+0.02 | 98 | 82 | 98+0 / -0.04 | 79 | 12 | |
| ACM0075CNR10 | 1000FF054007 | Ø75 +0.06/+0.03 | 115 | 96 | 137+0 / -0.04 | 109 | 15 |
真空度压力 [Pa]： 10-6
泄漏率(He) [Pa.m3/sec]： < 10-12
温度范围(°C)：0~80°C
适用气体：Inert Gas 惰性气体
外壳材质：SUS304
轴材质：SUS420
