空心型含法兰磁性流体轴封
磁流体密封装置
_Non_Flange_Ferrofluid-Feedthrough.gif)

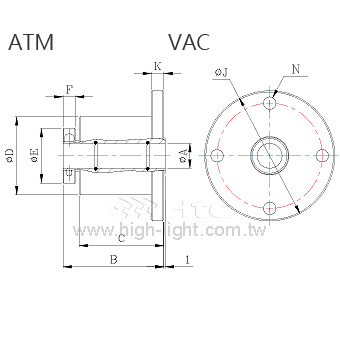

| select | |||||||
| Model No. | AFM0010CNR10 | AFM0020CNR10 | AFM0025CNR10 | AFM0030CNR10 | AFM0040CNR10 | AFM0050CNR10 | AFM0075CNR10 |
| Parts No. | 1000FF055001 | 1000FF055002 | 1000FF055003 | 1000FF055004 | 1000FF055005 | 1000FF055006 | 1000FF055007 |
| ØA | Ø10 +0.03/+0.01 | Ø20 +0.04/+0.02 | Ø25 +0.04/+0.02 | Ø30 +0.04/+0.02 | Ø40 +0.05/+0.02 | Ø50 +0.05/+0.02 | Ø75 +0.06/+0.03 |
| B | 78 | 82.5 | 88 | 93 | 96 | 98 | 115 |
| C | 64 | 68.5 | 74 | 79 | 80 | 82 | 96 |
| ØD | 51 | 63 | 71 | 78 | 90 | 103 | 143 |
| ØE | 34 | 44 | 49 | 54 | 69 | 79 | 109 |
| F | 10 | 10 | 10 | 10 | 12 | 12 | 15 |
| ØJ | 90 | 105 | 120 | 120 | 145 | 160 | 210 |
| N | P.C.D.70/4-Ø10 | P.C.D.85/4-Ø10 | P.C.D.100/4-Ø10 | P.C.D.100/4-Ø10 | P.C.D.120/4-Ø12 | P.C.D.135/4-Ø12 | P.C.D.185/8-Ø12 |
| Select | Model No. | Parts No. | ØA | B | C | ØD | ØE | F | ØJ | N |
| AFM0010CNR10 | 1000FF055001 | Ø10 +0.03/+0.01 | 78 | 64 | 51 | 34 | 10 | 90 | P.C.D.70/4-Ø10 | |
| AFM0020CNR10 | 1000FF055002 | Ø20 +0.04/+0.02 | 82.5 | 68.5 | 63 | 44 | 10 | 105 | P.C.D.85/4-Ø10 | |
| AFM0025CNR10 | 1000FF055003 | Ø25 +0.04/+0.02 | 88 | 74 | 71 | 49 | 10 | 120 | P.C.D.100/4-Ø10 | |
| AFM0030CNR10 | 1000FF055004 | Ø30 +0.04/+0.02 | 93 | 79 | 78 | 54 | 10 | 120 | P.C.D.100/4-Ø10 | |
| AFM0040CNR10 | 1000FF055005 | Ø40 +0.05/+0.02 | 96 | 80 | 90 | 69 | 12 | 145 | P.C.D.120/4-Ø12 | |
| AFM0050CNR10 | 1000FF055006 | Ø50 +0.05/+0.02 | 98 | 82 | 103 | 79 | 12 | 160 | P.C.D.135/4-Ø12 | |
| AFM0075CNR10 | 1000FF055007 | Ø75 +0.06/+0.03 | 115 | 96 | 143 | 109 | 15 | 210 | P.C.D.185/8-Ø12 |
真空度压力 [Pa]： 10-6
泄漏率(He) [Pa.m3/sec]： < 10-12
温度范围(°C)：0~80°C
适用气体：Inert Gas 惰性气体
外壳材质：SUS304
轴材质：SUS420
