KF-VCR法兰管接头(公牙)
管接头系列
| select | ||||||||

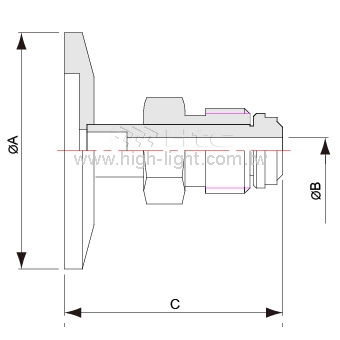

| Model No. | KF16MVCR6 | KF16MVCR13 | KF25MVCR6 | KF25MVCR13 | KF40MVCR6 | KF40MVCR13 | KF50MVCR6 | KF50MVCR13 |
| Parts No. | 17010216012 | 17010216032 | 17010316012 | 17010316032 | 17010516012 | 17010516032 | 17010616012 | 17010616032 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 30 | 30 | 40 | 40 | 55 | 55 | 75 | 75 |
| B | 4.4 | 10.4 | 4.4 | 10.4 | 4.4 | 10.4 | 4.4 | 10.4 |
| C | 37 | 41.9 | 37 | 41.9 | 37 | 41.9 | 37 | 41.9 |
| VCR | 1/4" | 1/2" | 1/4" | 1/2" | 1/4" | 1/2" | 1/4" | 1/2" |
| Select | Model No. | Parts No. | Material | A | B | C | VCR |
| KF16MVCR6 | 17010216012 | 304 S.S. | 30 | 4.4 | 37 | 1/4" | |
| KF16MVCR13 | 17010216032 | 304 S.S. | 30 | 10.4 | 41.9 | 1/2" | |
| KF25MVCR6 | 17010316012 | 304 S.S. | 40 | 4.4 | 37 | 1/4" | |
| KF25MVCR13 | 17010316032 | 304 S.S. | 40 | 10.4 | 41.9 | 1/2" | |
| KF40MVCR6 | 17010516012 | 304 S.S. | 55 | 4.4 | 37 | 1/4" | |
| KF40MVCR13 | 17010516032 | 304 S.S. | 55 | 10.4 | 41.9 | 1/2" | |
| KF50MVCR6 | 17010616012 | 304 S.S. | 75 | 4.4 | 37 | 1/4" | |
| KF50MVCR13 | 17010616032 | 304 S.S. | 75 | 10.4 | 41.9 | 1/2" |
