KF-Swagelok法兰管接头
管接头系列
| select | ||||||||
| Model No. | KF16SWA6 | KF16SWA13 | KF25SWA6 | KF25SWA13 | KF40SWA6 | KF40SWA13 | KF50SWA6 | KF50SWA13 |
| Parts No. | 17010219012 | 17010219032 | 17010319012 | 17010319032 | 17010519012 | 17010519032 | 17010619012 | 17010619032 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |

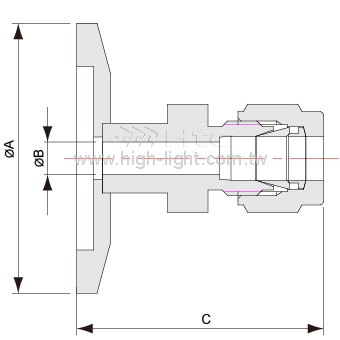

| A | 30 | 30 | 40 | 40 | 55 | 55 | 75 | 75 |
| B | 4.8 | 10.8 | 4.8 | 10.8 | 4.8 | 10.8 | 4.8 | 10.8 |
| C | 36.6 | 45 | 36.6 | 54.3 | 36.6 | 54.3 | 36.6 | 54.3 |
| Swagelok | 1/4" | 1/2" | 1/4" | 1/2" | 1/4" | 1/2" | 1/4" | 1/2" |
| Select | Model No. | Parts No. | Material | A | B | C | Swagelok |
| KF16SWA6 | 17010219012 | 304 S.S. | 30 | 4.8 | 36.6 | 1/4" | |
| KF16SWA13 | 17010219032 | 304 S.S. | 30 | 10.8 | 45 | 1/2" | |
| KF25SWA6 | 17010319012 | 304 S.S. | 40 | 4.8 | 36.6 | 1/4" | |
| KF25SWA13 | 17010319032 | 304 S.S. | 40 | 10.8 | 54.3 | 1/2" | |
| KF40SWA6 | 17010519012 | 304 S.S. | 55 | 4.8 | 36.6 | 1/4" | |
| KF40SWA13 | 17010519032 | 304 S.S. | 55 | 10.8 | 54.3 | 1/2" | |
| KF50SWA6 | 17010619012 | 304 S.S. | 75 | 4.8 | 36.6 | 1/4" | |
| KF50SWA13 | 17010619032 | 304 S.S. | 75 | 10.8 | 54.3 | 1/2" |
