KF-Female Pipe管接头-NPT
管接头系列
select | ||||||||
Model No. | KF16FNPT3 | KF25FNPT3 | KF40FNPT3 | KF50FNPT3 | KF16FNPT6 | KF25FNPT6 | KF40FNPT6 | KF50FNPT6 |
Parts No. | 17010215002 | 17010315002 | 17010515002 | 17010615002 | 17010215012 | 17010315012 | 17010515012 | 17010615012 |
Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |

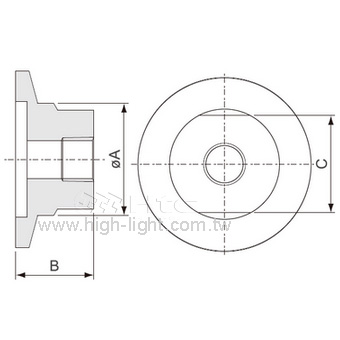

A | 19.05 | 25.4 | 38.1 | 50.8 | 19.05 | 25.4 | 38.1 | 50.8 |
B | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
C | 17 | 19 | 32 | 46 | 17 | 19 | 32 | 46 |
Tread | 1/8"NPT | 1/8"NPT | 1/8"NPT | 1/8"NPT | 1/4"NPT | 1/4"NPT | 1/4"NPT | 1/4"NPT |
Select | Model No. | Parts No. | Material | A | B | C | Tread |
KF16FNPT3 | 17010215002 | 304 S.S. | 19.05 | 25 | 17 | 1/8"NPT | |
KF25FNPT3 | 17010315002 | 304 S.S. | 25.4 | 25 | 19 | 1/8"NPT | |
KF40FNPT3 | 17010515002 | 304 S.S. | 38.1 | 25 | 32 | 1/8"NPT | |
KF50FNPT3 | 17010615002 | 304 S.S. | 50.8 | 25 | 46 | 1/8"NPT | |
KF16FNPT6 | 17010215012 | 304 S.S. | 19.05 | 25 | 17 | 1/4"NPT | |
KF25FNPT6 | 17010315012 | 304 S.S. | 25.4 | 25 | 19 | 1/4"NPT | |
KF40FNPT6 | 17010515012 | 304 S.S. | 38.1 | 25 | 32 | 1/4"NPT | |
KF50FNPT6 | 17010615012 | 304 S.S. | 50.8 | 25 | 46 | 1/4"NPT |
