KF-Female Pipe管接头-PT
管接头系列
| select | ||||||||
| Model No. | KF16FPT3 | KF25FPT3 | KF40FPT3 | KF50FPT3 | KF16FPT6 | KF25FPT6 | KF40FPT6 | KF50FPT6 |
| Parts No. | 17010213002 | 17010313002 | 17010513002 | 17010613002 | 17010213012 | 17010313012 | 17010513012 | 17010613012 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |

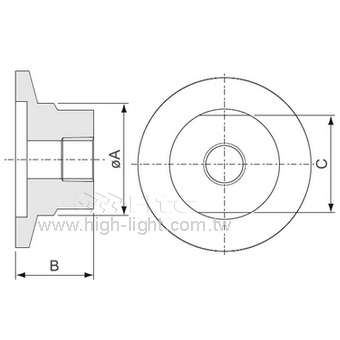

| A | 19.05 | 25.4 | 38.1 | 50.8 | 19.05 | 25.4 | 38.1 | 50.8 |
| B | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| C | 17 | 19 | 32 | 46 | 17 | 19 | 32 | 46 |
| Tread | 1/8"PT | 1/8"PT | 1/8"PT | 1/8"PT | 1/4"PT | 1/4"PT | 1/4"PT | 1/4"PT |
| Select | Model No. | Parts No. | Material | A | B | C | Tread |
| KF16FPT3 | 17010213002 | 304 S.S. | 19.05 | 25 | 17 | 1/8"PT | |
| KF25FPT3 | 17010313002 | 304 S.S. | 25.4 | 25 | 19 | 1/8"PT | |
| KF40FPT3 | 17010513002 | 304 S.S. | 38.1 | 25 | 32 | 1/8"PT | |
| KF50FPT3 | 17010613002 | 304 S.S. | 50.8 | 25 | 46 | 1/8"PT | |
| KF16FPT6 | 17010213012 | 304 S.S. | 19.05 | 25 | 17 | 1/4"PT | |
| KF25FPT6 | 17010313012 | 304 S.S. | 25.4 | 25 | 19 | 1/4"PT | |
| KF40FPT6 | 17010513012 | 304 S.S. | 38.1 | 25 | 32 | 1/4"PT | |
| KF50FPT6 | 17010613012 | 304 S.S. | 50.8 | 25 | 46 | 1/4"PT |
