KF法兰型APC蝶阀
APC 蝶阀-MODBUS通讯
| select | ||||||||||||
| Model No. | KF25BFVC/RS232/12bit | KF25BFVC/RS232/24bit | KF40BFVC/RS232/12bit | KF40BFVC/RS232/24bit | KF50BFVC/RS232/12bit | KF50BFVC/RS232/24bit | KF25BFVC/RS485/12bit | KF25BFVC/RS485/24bit | KF40BFVC/RS485/12bit | KF40BFVC/RS485/24bit | KF50BFVC/RS485/12bit | KF50BFVC/RS485/24bit |
| Parts No. | 3202111101214 | 320211110121E | 3202131101214 | 320213110121E | 3202141101214 | 320214110121E | 3202111101215 | 320211110121F | 3202131101215 | 320213110121F | 3202141101215 | 320214110121F |
| Interface | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS485 | RS485 | RS485 | RS485 | RS485 | RS485 |
| A | 27 | 27 | 27 | 27 | 27 | 27 | 27 | 27 | 27 | 27 | 27 | 27 |
| B | 50 | 50 | 57 | 57 | 57 | 57 | 50 | 50 | 57 | 57 | 57 | 57 |
| D | 65 | 65 | 80 | 80 | 90 | 90 | 65 | 65 | 80 | 80 | 90 | 90 |
| E | 231 | 231 | 239.5 | 239.5 | 245 | 245 | 231 | 231 | 239.5 | 239.5 | 245 | 245 |
| F | 263.5 | 263.5 | 279.5 | 279.5 | 290 | 290 | 263.5 | 263.5 | 279.5 | 279.5 | 290 | 290 |
| G | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| H | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 |
| Select | Model No. | Parts No. | Interface | A | B | D | E | F | G | H |
| KF25BFVC/RS232/12bit | 3202111101214 | RS232 | 27 | 50 | 65 | 231 | 263.5 | 90 | 130 | |
| KF25BFVC/RS232/24bit | 320211110121E | RS232 | 27 | 50 | 65 | 231 | 263.5 | 90 | 130 | |
| KF40BFVC/RS232/12bit | 3202131101214 | RS232 | 27 | 57 | 80 | 239.5 | 279.5 | 90 | 130 | |
| KF40BFVC/RS232/24bit | 320213110121E | RS232 | 27 | 57 | 80 | 239.5 | 279.5 | 90 | 130 | |
| KF50BFVC/RS232/12bit | 3202141101214 | RS232 | 27 | 57 | 90 | 245 | 290 | 90 | 130 | |
| KF50BFVC/RS232/24bit | 320214110121E | RS232 | 27 | 57 | 90 | 245 | 290 | 90 | 130 | |
| KF25BFVC/RS485/12bit | 3202111101215 | RS485 | 27 | 50 | 65 | 231 | 263.5 | 90 | 130 | |
| KF25BFVC/RS485/24bit | 320211110121F | RS485 | 27 | 50 | 65 | 231 | 263.5 | 90 | 130 | |
| KF40BFVC/RS485/12bit | 3202131101215 | RS485 | 27 | 57 | 80 | 239.5 | 279.5 | 90 | 130 | |
| KF40BFVC/RS485/24bit | 320213110121F | RS485 | 27 | 57 | 80 | 239.5 | 279.5 | 90 | 130 | |
| KF50BFVC/RS485/12bit | 3202141101215 | RS485 | 27 | 57 | 90 | 245 | 290 | 90 | 130 | |
| KF50BFVC/RS485/24bit | 320214110121F | RS485 | 27 | 57 | 90 | 245 | 290 | 90 | 130 |

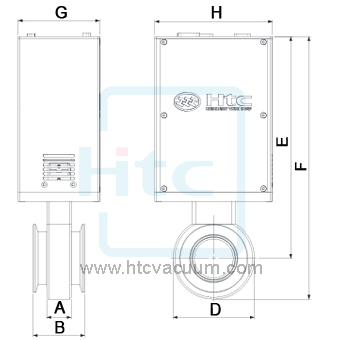

SolidWorks 2D & 3D 产品图稿
| Model No. | KF25BFVC/RS232 | KF40BFVC/RS232 | KF50BFVC/RS232 |
| Parts No. | 3202111101214 | 3202131101214 | 3202141101214 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP |
KF法兰型APC蝶阀特色
- 阀门尺寸 : 1"(25.4mm),1-1/2"(38.1mm), 2"(50.8mm)
- 法兰 : KF
- 压力范围 : 10-8 mbar to 1.2 bar
- 泄漏率 (阀体，阀座) : 1x10-9 mbar. l/sec
- 第一次保养前作动次数:
>> 压力控制 : 2,000,000
>> 关闭 / 开启 : 250,000 - 阀体、蝶板、阀轴材质 : 304 S.S.
- 密封材质 : Viton
- 安装位置 : Any
- 位置控制：多方位设置 (0o ~ 90o)
- 标准开启、关闭时间 : 0.85 s
- 环境运行温度：0-50℃
- 温度：Actuator ≦ 70°C / Body ≦ 110°C
