ISO法兰型APC蝶阀
APC 蝶阀-MODBUS通讯
| select | ||||||||||||||||

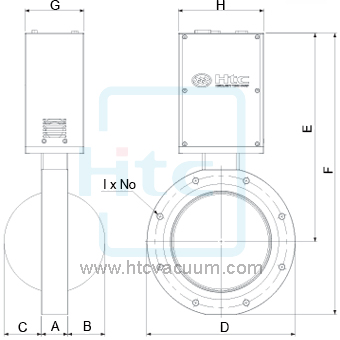

| Model No. | ISO63BFVC/RS232/12bit | ISO63BFVC/RS232/24bit | ISO80BFVC/RS232/12bit | ISO80BFVC/RS232/24bit | ISO100BFVC/RS232/12bit | ISO100BFVC/RS232/24bit | ISO160BFVC/RS232/12bit | ISO160BFVC/RS232/24bit | ISO63BFVC/RS485/12bit | ISO63BFVC/RS485/24bit | ISO80BFVC/RS485/12bit | ISO80BFVC/RS485/24bit | ISO100BFVC/RS485/12bit | ISO100BFVC/RS485/24bit | ISO160BFVC/RS485/12bit | ISO160BFVC/RS485/24bit |
| Parts No. | 3202151113214 | 320215111321E | 3202161113214 | 320216111321E | 3202181113214 | 320218111321E | 3202201113214 | 320220111321E | 3202151113215 | 320215111321F | 3202161113215 | 320216111321F | 3202181113215 | 320218111321F | 3202201113215 | 320220111321F |
| Interface | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS485 | RS485 | RS485 | RS485 | RS485 | RS485 | RS485 | RS485 |
| A | 30 | 30 | 30 | 30 | 30 | 30 | 40 | 40 | 30 | 30 | 30 | 30 | 30 | 30 | 40 | 40 |
| B | 15 | 15 | 26 | 26 | 36 | 36 | 57 | 57 | 15 | 15 | 26 | 26 | 36 | 36 | 57 | 57 |
| C | 21 | 21 | 26 | 26 | 36 | 36 | 57 | 57 | 21 | 21 | 26 | 26 | 36 | 36 | 57 | 57 |
| D | 130 | 130 | 145 | 145 | 165 | 165 | 225 | 225 | 130 | 130 | 145 | 145 | 165 | 165 | 225 | 225 |
| E | 267 | 267 | 275 | 275 | 286 | 286 | 426 | 426 | 267 | 267 | 275 | 275 | 286 | 286 | 426 | 426 |
| F | 327 | 327 | 344 | 344 | 363 | 363 | 536 | 536 | 327 | 327 | 344 | 344 | 363 | 363 | 536 | 536 |
| G | 90 | 90 | 90 | 90 | 90 | 90 | 110 | 110 | 90 | 90 | 90 | 90 | 90 | 90 | 110 | 110 |
| H | 130 | 130 | 130 | 130 | 130 | 130 | 140 | 140 | 130 | 130 | 130 | 130 | 130 | 130 | 140 | 140 |
| I x No | M8x4 | M8*4 | M8x8 | M8*8 | M8x8 | M8*8 | M10x8 | M10*8 | M8x4 | M8*4 | M8x8 | M8*8 | M8x8 | M8*8 | M10x8 | M10*8 |
| P.C.D. | 110 | 110 | 125 | 125 | 145 | 145 | 200 | 200 | 110 | 110 | 125 | 125 | 145 | 145 | 200 | 200 |
| Thread Depth | 12 | 12 | 12 | 12 | 12 | 12 | 15 | 15 | 12 | 12 | 12 | 12 | 12 | 12 | 15 | 15 |
| Select | Model No. | Parts No. | Interface | A | B | C | D | E | F | G | H | I x No | P.C.D. | Thread Depth |
| ISO63BFVC/RS232/12bit | 3202151113214 | RS232 | 30 | 15 | 21 | 130 | 267 | 327 | 90 | 130 | M8x4 | 110 | 12 | |
| ISO63BFVC/RS232/24bit | 320215111321E | RS232 | 30 | 15 | 21 | 130 | 267 | 327 | 90 | 130 | M8*4 | 110 | 12 | |
| ISO80BFVC/RS232/12bit | 3202161113214 | RS232 | 30 | 26 | 26 | 145 | 275 | 344 | 90 | 130 | M8x8 | 125 | 12 | |
| ISO80BFVC/RS232/24bit | 320216111321E | RS232 | 30 | 26 | 26 | 145 | 275 | 344 | 90 | 130 | M8*8 | 125 | 12 | |
| ISO100BFVC/RS232/12bit | 3202181113214 | RS232 | 30 | 36 | 36 | 165 | 286 | 363 | 90 | 130 | M8x8 | 145 | 12 | |
| ISO100BFVC/RS232/24bit | 320218111321E | RS232 | 30 | 36 | 36 | 165 | 286 | 363 | 90 | 130 | M8*8 | 145 | 12 | |
| ISO160BFVC/RS232/12bit | 3202201113214 | RS232 | 40 | 57 | 57 | 225 | 426 | 536 | 110 | 140 | M10x8 | 200 | 15 | |
| ISO160BFVC/RS232/24bit | 320220111321E | RS232 | 40 | 57 | 57 | 225 | 426 | 536 | 110 | 140 | M10*8 | 200 | 15 | |
| ISO63BFVC/RS485/12bit | 3202151113215 | RS485 | 30 | 15 | 21 | 130 | 267 | 327 | 90 | 130 | M8x4 | 110 | 12 | |
| ISO63BFVC/RS485/24bit | 320215111321F | RS485 | 30 | 15 | 21 | 130 | 267 | 327 | 90 | 130 | M8*4 | 110 | 12 | |
| ISO80BFVC/RS485/12bit | 3202161113215 | RS485 | 30 | 26 | 26 | 145 | 275 | 344 | 90 | 130 | M8x8 | 125 | 12 | |
| ISO80BFVC/RS485/24bit | 320216111321F | RS485 | 30 | 26 | 26 | 145 | 275 | 344 | 90 | 130 | M8*8 | 125 | 12 | |
| ISO100BFVC/RS485/12bit | 3202181113215 | RS485 | 30 | 36 | 36 | 165 | 286 | 363 | 90 | 130 | M8x8 | 145 | 12 | |
| ISO100BFVC/RS485/24bit | 320218111321F | RS485 | 30 | 36 | 36 | 165 | 286 | 363 | 90 | 130 | M8*8 | 145 | 12 | |
| ISO160BFVC/RS485/12bit | 3202201113215 | RS485 | 40 | 57 | 57 | 225 | 426 | 536 | 110 | 140 | M10x8 | 200 | 15 | |
| ISO160BFVC/RS485/24bit | 320220111321F | RS485 | 40 | 57 | 57 | 225 | 426 | 536 | 110 | 140 | M10*8 | 200 | 15 |
SolidWorks 2D & 3D 产品图稿
| Model No. | ISO63BFVC/RS232 | ISO100BFVC/RS232 |
| Parts No. | 3202151113214 | 3202181113214 |
| Download Type | DWG | STEP | DWG | STEP |
ISO法兰型APC蝶阀特色
- 阀门尺寸 : 2-1/2"(63.5mm), 3"(76.2mm), 4"(101.6mm)
- 法兰 : ISO-F
- 压力范围 : 10-8 mbar to 1.2 bar
- 泄漏率 (阀体，阀座) : 1x10-9 mbar. l/sec
- 第一次保养前作动次数:
>> 压力控制 : 2,000,000
>> 关闭 / 开启 : 250,000 - 阀体、蝶板、阀轴材质 : 304 S.S.
- 密封材质 : Viton
- 安装位置 : Any
- 位置控制：多方位设置 (0o ~ 90o)
- 标准开启、关闭时间 : ISO63~ISO100 ＿ 0.85 s；ISO160 ＿ 3.5s
- 溫度：Actuator ≦ 70°C / Body ≦ 110°C
