CF法兰型APC蝶阀
APC 蝶阀-MODBUS通讯
| select | ||||||||||||||||

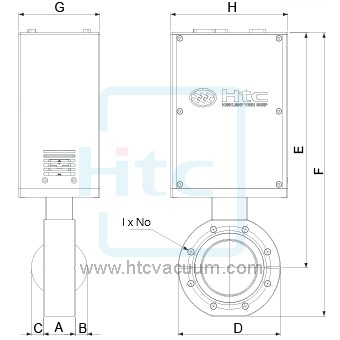

| Model No. | CF35BFVC/RS232/12bit | CF35BFVC/RS232/24bit | CF63BFVC/RS232/12bit | CF63BFVC/RS232/24bit | CF100BFVC/RS232/12bit | CF100BFVC/RS232/24bit | CF150BFVC/RS232/12bit | CF150BFVC/RS232/24bit | CF35BFVC/RS485/12bit | CF35BFVC/RS485/24bit | CF63BFVC/RS485/12bit | CF63BFVC/RS485/24bit | CF100BFVC/RS485/12bit | CF100BFVC/RS485/24bit | CF150BFVC/RS485/12bit | CF150BFVC/RS485/24bit |
| Parts No. | 3202131102214 | 320213110221E | 3202151102214 | 320215110221E | 3202181102214 | 320218110221E | 3202201102214 | 320220110221E | 3202131102215 | 320213110221F | 3202151102215 | 320215110221F | 3202181102215 | 320218110221F | 3202201102215 | 320220110221F |
| Interface | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS485 | RS485 | RS485 | RS485 | RS485 | RS485 | RS485 | RS485 |
| A | 30 | 30 | 35 | 35 | 30 | 30 | 40 | 40 | 30 | 30 | 35 | 35 | 30 | 30 | 40 | 40 |
| B | 4.5 | 4.5 | 16.5 | 16.5 | 36.5 | 36.5 | 56.5 | 56.6 | 4.5 | 4.5 | 16.5 | 16.5 | 36.5 | 36.5 | 56.6 | 56.6 |
| C | 4.5 | 4.5 | 16.5 | 16.5 | 36.5 | 36.5 | 56.5 | 56.6 | 4.5 | 4.5 | 16.5 | 16.5 | 36.5 | 36.5 | 56.6 | 56.6 |
| D | 69.5 | 69.5 | 113.6 | 113.6 | 151.6 | 151.6 | 202.5 | 202.5 | 69.5 | 69.5 | 113.6 | 113.6 | 151.6 | 151.6 | 202.5 | 202.5 |
| E | 229 | 229 | 260.5 | 260.5 | 279 | 279 | 416 | 416 | 229 | 229 | 260.5 | 260.5 | 279 | 279 | 416 | 416 |
| F | 264 | 264 | 314 | 314 | 351 | 351 | 514.5 | 514.5 | 264 | 264 | 314 | 314 | 351 | 351 | 514.5 | 514.5 |
| G | 90 | 90 | 90 | 90 | 90 | 90 | 110 | 110 | 90 | 90 | 90 | 90 | 90 | 90 | 110 | 110 |
| H | 130 | 130 | 130 | 130 | 130 | 130 | 140 | 140 | 130 | 130 | 130 | 130 | 130 | 130 | 140 | 140 |
| I x No | M6x6 | M6*6 | M8x8 | M8*8 | M8x16 | M8*16 | M8x20 | M8*20 | M6x6 | M6*6 | M8x8 | M8*8 | M8x16 | M8*16 | M8x20 | M8*20 |
| P.C.D. | 58.7 | 58.7 | 92.1 | 92.1 | 130.3 | 130.3 | 181 | 181 | 58.7 | 58.7 | 92.1 | 92.1 | 130.3 | 130.3 | 181 | 181 |
| Thread Depth | 12 | 12 | 12 | 12 | 12 | 12 | 15 | 15 | 12 | 12 | 12 | 12 | 12 | 12 | 15 | 15 |
| Select | Model No. | Parts No. | Interface | A | B | C | D | E | F | G | H | I x No | P.C.D. | Thread Depth |
| CF35BFVC/RS232/12bit | 3202131102214 | RS232 | 30 | 4.5 | 4.5 | 69.5 | 229 | 264 | 90 | 130 | M6x6 | 58.7 | 12 | |
| CF35BFVC/RS232/24bit | 320213110221E | RS232 | 30 | 4.5 | 4.5 | 69.5 | 229 | 264 | 90 | 130 | M6*6 | 58.7 | 12 | |
| CF63BFVC/RS232/12bit | 3202151102214 | RS232 | 35 | 16.5 | 16.5 | 113.6 | 260.5 | 314 | 90 | 130 | M8x8 | 92.1 | 12 | |
| CF63BFVC/RS232/24bit | 320215110221E | RS232 | 35 | 16.5 | 16.5 | 113.6 | 260.5 | 314 | 90 | 130 | M8*8 | 92.1 | 12 | |
| CF100BFVC/RS232/12bit | 3202181102214 | RS232 | 30 | 36.5 | 36.5 | 151.6 | 279 | 351 | 90 | 130 | M8x16 | 130.3 | 12 | |
| CF100BFVC/RS232/24bit | 320218110221E | RS232 | 30 | 36.5 | 36.5 | 151.6 | 279 | 351 | 90 | 130 | M8*16 | 130.3 | 12 | |
| CF150BFVC/RS232/12bit | 3202201102214 | RS232 | 40 | 56.5 | 56.5 | 202.5 | 416 | 514.5 | 110 | 140 | M8x20 | 181 | 15 | |
| CF150BFVC/RS232/24bit | 320220110221E | RS232 | 40 | 56.6 | 56.6 | 202.5 | 416 | 514.5 | 110 | 140 | M8*20 | 181 | 15 | |
| CF35BFVC/RS485/12bit | 3202131102215 | RS485 | 30 | 4.5 | 4.5 | 69.5 | 229 | 264 | 90 | 130 | M6x6 | 58.7 | 12 | |
| CF35BFVC/RS485/24bit | 320213110221F | RS485 | 30 | 4.5 | 4.5 | 69.5 | 229 | 264 | 90 | 130 | M6*6 | 58.7 | 12 | |
| CF63BFVC/RS485/12bit | 3202151102215 | RS485 | 35 | 16.5 | 16.5 | 113.6 | 260.5 | 314 | 90 | 130 | M8x8 | 92.1 | 12 | |
| CF63BFVC/RS485/24bit | 320215110221F | RS485 | 35 | 16.5 | 16.5 | 113.6 | 260.5 | 314 | 90 | 130 | M8*8 | 92.1 | 12 | |
| CF100BFVC/RS485/12bit | 3202181102215 | RS485 | 30 | 36.5 | 36.5 | 151.6 | 279 | 351 | 90 | 130 | M8x16 | 130.3 | 12 | |
| CF100BFVC/RS485/24bit | 320218110221F | RS485 | 30 | 36.5 | 36.5 | 151.6 | 279 | 351 | 90 | 130 | M8*16 | 130.3 | 12 | |
| CF150BFVC/RS485/12bit | 3202201102215 | RS485 | 40 | 56.6 | 56.6 | 202.5 | 416 | 514.5 | 110 | 140 | M8x20 | 181 | 15 | |
| CF150BFVC/RS485/24bit | 320220110221F | RS485 | 40 | 56.6 | 56.6 | 202.5 | 416 | 514.5 | 110 | 140 | M8*20 | 181 | 15 |
CF法兰型APC蝶阀特色
- 阀门尺寸：1-1/2"(38.1mm), 2-1/2"(63.5mm), 4" (101.6mm)
- 法兰：CF
- 压力范围：10-8 mbar to 1.2 bar
- 第一次保养前作动次数：
-- 压力控制：2,000,000
-- 关闭 / 开启：250,000
- 泄漏率 (阀体，阀座)：1x10-9 mbar．l/sec
- 阀体、蝶板、阀轴材质：304 S.S.
- 密封材质：Viton
- 安装位置：Any
- 位置控制：多方位设置 (0℃~90℃)
- 标准开启、关闭时间 ：CF35 ＿ 0.85s；CF63~100 ＿ 0.85s ；CF150 ＿ 3.5s
- 温度 : Actuator≦70℃ ; Body≦110℃
