ISO Full Nipples
管状连接头
| select | |||||||||
| Model No. | ISO63N100 | ISO80N100 | ISO100N100 | ISO160N100 | ISO200N100 | ISO250N100 | ISO320N200 | ISO400N200 | ISO500N200 |
| Parts No. | 160120720701004 | 160120820801004 | 160120920901004 | 160121221201004 | 160121321301004 | 160121421401004 | 160121621602004 | 160121821802004 | 160121921902004 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |

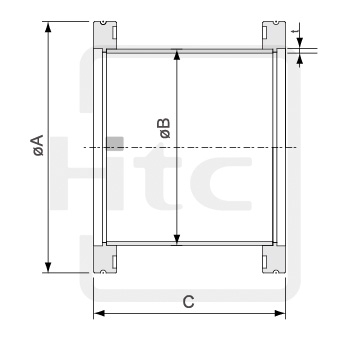

| A | 95 | 110 | 130 | 180 | 240 | 290 | 370 | 450 | 550 |
| B | 63.5 | 76.2 | 101.6 | 152.4 | 203.2 | 254 | 304.8 | 406.4 | 508 |
| C | 100 | 100 | 100 | 100 | 100 | 100 | 200 | 200 | 200 |
| t | 2.1 | 2.1 | 2.1 | 2.77 | 2 | 3 | contact us | contact us | contact us |
| Select | Model No. | Parts No. | Material | A | B | C | t |
| ISO63N100 | 160120720701004 | 304 S.S. | 95 | 63.5 | 100 | 2.1 | |
| ISO80N100 | 160120820801004 | 304 S.S. | 110 | 76.2 | 100 | 2.1 | |
| ISO100N100 | 160120920901004 | 304 S.S. | 130 | 101.6 | 100 | 2.1 | |
| ISO160N100 | 160121221201004 | 304 S.S. | 180 | 152.4 | 100 | 2.77 | |
| ISO200N100 | 160121321301004 | 304 S.S. | 240 | 203.2 | 100 | 2 | |
| ISO250N100 | 160121421401004 | 304 S.S. | 290 | 254 | 100 | 3 | |
| ISO320N200 | 160121621602004 | 304 S.S. | 370 | 304.8 | 200 | contact us | |
| ISO400N200 | 160121821802004 | 304 S.S. | 450 | 406.4 | 200 | contact us | |
| ISO500N200 | 160121921902004 | 304 S.S. | 550 | 508 | 200 | contact us |
■零件号（零件号）加“ K”表示喷砂表面
■零件号（零件号）加“ L”表示抛光表面
