CF Nipples(旋转)
管状连接头
select | ||||||

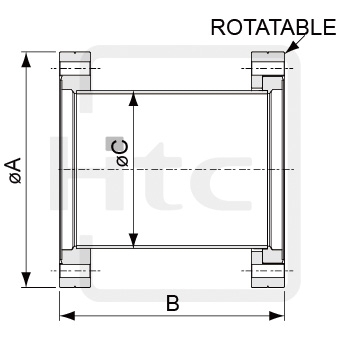

Model No. | CF16NR76 | CF35NR126 | CF63NR210 | CF100NR270 | CF150NR334 | CF200NR334 |
Parts No. | 160160280200764 | 160160480401264 | 160160780702104 | 160160980902704 | 160161181103344 | 160161381303344 |
Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
A | 33.8 | 69.5 | 113.6 | 151.6 | 202.5 | 253.2 |
B | 76 | 126 | 210 | 270 | 334 | 334 |
C | 19.05 | 38.1 | 63.5 | 101.6 | 152.4 | 203.2 |
Select | Model No. | Parts No. | Material | A | B | C |
CF16NR76 | 160160280200764 | 304 S.S. | 33.8 | 76 | 19.05 | |
CF35NR126 | 160160480401264 | 304 S.S. | 69.5 | 126 | 38.1 | |
CF63NR210 | 160160780702104 | 304 S.S. | 113.6 | 210 | 63.5 | |
CF100NR270 | 160160980902704 | 304 S.S. | 151.6 | 270 | 101.6 | |
CF150NR334 | 160161181103344 | 304 S.S. | 202.5 | 334 | 152.4 | |
CF200NR334 | 160161381303344 | 304 S.S. | 253.2 | 334 | 203.2 |
※单边法兰可旋转※
