CF Nipples(固定)
管状连接头
| select | ||||||

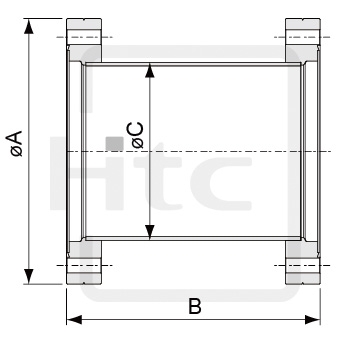

| Model No. | CF16N76 | CF35N126 | CF63N210 | CF100N270 | CF150N334 | CF200N334 |
| Parts No. | 160180280200764 | 160180480401264 | 160180780702104 | 160180980902704 | 160181181103344 | 160181381303344 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 33.8 | 69.5 | 113.6 | 151.6 | 202.5 | 253.2 |
| B | 76 | 126 | 210 | 270 | 334 | 334 |
| C | 19.05 | 38.1 | 63.5 | 101.6 | 152.4 | 203.2 |
| Select | Model No. | Parts No. | Material | A | B | C |
| CF16N76 | 160180280200764 | 304 S.S. | 33.8 | 76 | 19.05 | |
| CF35N126 | 160180480401264 | 304 S.S. | 69.5 | 126 | 38.1 | |
| CF63N210 | 160180780702104 | 304 S.S. | 113.6 | 210 | 63.5 | |
| CF100N270 | 160180980902704 | 304 S.S. | 151.6 | 270 | 101.6 | |
| CF150N334 | 160181181103344 | 304 S.S. | 202.5 | 334 | 152.4 | |
| CF200N334 | 160181381303344 | 304 S.S. | 253.2 | 334 | 203.2 |
■零件号（零件号）加“ K”表示喷砂表面
■零件号（零件号）加“ L”表示抛光表面
