KP120N Pirani Vacuum Gauge Controller
Vacuum Gauge Controller
Product

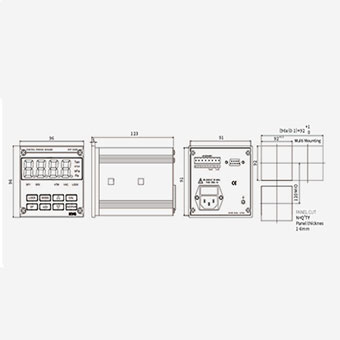

- The Series KP120NVacuum Gauge Controllerhas a DIN standard size ( 96 × 96 ) and is a panel mounting type, making it convenient to use as it is easy to operate the keys when setting the menu.
- The display use a high-brightness chip LED module, so it is large and clear, and easy to manage.⁃Compact design, accuracy, stability, reliability, reproducibility, and durability will help improve quality and productivity
SPECIFICATION
Analog output | 0 Log Scale (0 ~ 5Vdc) 1 Log Scale ( 0 ~ 6Vdc ) |
SET POINT RELAYS | 2 Point SPST (5A / 30VDC ,5A / 250VAC ) |
POWER REQUIRED | AC85 ~ 265V / 20VA 50 ~ 60 Hz |
OPTIONAL |
RS232 / 485 ASCII, |
Application Sensor | KVC300 Pirani Sensor |
Sensor Fitting Size |
1/8NPT, 15mm O.D, 1/4VCR, NW16KF |
Measurement Range |
1.0-4 to 10 Torr |
