DIN 卫生管件(短型)
管接头
| select | |||||||||||||

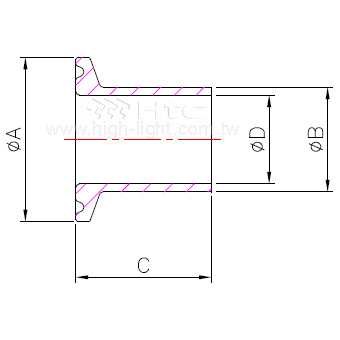

| Model No. | 9-DINFS | 10-DINFS | 16-DINFS | 25-DINFS | 32-DINFS | 40-DINFS | 50-DINFS | 80-DINFS | 90-DINFS | 100-DINFS | 125-DINFS | 160-DINFS | 200-DINFS |
| Parts No. | 159A00BC6 | 159A01BD6 | 159A02BE6 | 159A03BF6 | 159A23BG6 | 159A05BH6 | 159A06BJ6 | 159A08BL6 | 159A24BM6 | 159A09BN6 | 159A10BP6 | 159A12BQ6 | 159A12BR6 |
| Material | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. |
| A | 34 | 34 | 34 | 50.5 | 50.5 | 50.5 | 64 | 91 | 106 | 119 | 155 | 183 | 233.5 |
| B | 12 | 18 | 22 | 28 | 34 | 40 | 52 | 70 | 85 | 104 | 129 | 154 | 204 |
| C | 28.6 | 28.6 | 28.6 | 28.6 | 28.6 | 28.6 | 28.6 | 28.6 | 28.6 | 28.6 | 28.6 | 28.6 | 28.6 |
| D | 9 | 15 | 19 | 25 | 31 | 37 | 49 | 66 | 81 | 100 | 125 | 150 | 200 |
| Remark | by order | by order | by order | by order | by order | by order | by order | by order | by order | by order | by order | by order | by order |
| Size | DN10(3/8") | DN15(1/2") | DN20(3/4") | DN25(1") | DN32(1.25") | DN40(1.5") | DN50(2") | DN65(3") | DN80(3.5") | DN100(4") | DN125(5") | DN150(6") | DN200(8") |
| Select | Model No. | Parts No. | Material | A | B | C | D | Remark | Size |
| 9-DINFS | 159A00BC6 | 316LS.S. | 34 | 12 | 28.6 | 9 | by order | DN10(3/8") | |
| 10-DINFS | 159A01BD6 | 316LS.S. | 34 | 18 | 28.6 | 15 | by order | DN15(1/2") | |
| 16-DINFS | 159A02BE6 | 316LS.S. | 34 | 22 | 28.6 | 19 | by order | DN20(3/4") | |
| 25-DINFS | 159A03BF6 | 316LS.S. | 50.5 | 28 | 28.6 | 25 | by order | DN25(1") | |
| 32-DINFS | 159A23BG6 | 316LS.S. | 50.5 | 34 | 28.6 | 31 | by order | DN32(1.25") | |
| 40-DINFS | 159A05BH6 | 316LS.S. | 50.5 | 40 | 28.6 | 37 | by order | DN40(1.5") | |
| 50-DINFS | 159A06BJ6 | 316LS.S. | 64 | 52 | 28.6 | 49 | by order | DN50(2") | |
| 80-DINFS | 159A08BL6 | 316LS.S. | 91 | 70 | 28.6 | 66 | by order | DN65(3") | |
| 90-DINFS | 159A24BM6 | 316LS.S. | 106 | 85 | 28.6 | 81 | by order | DN80(3.5") | |
| 100-DINFS | 159A09BN6 | 316LS.S. | 119 | 104 | 28.6 | 100 | by order | DN100(4") | |
| 125-DINFS | 159A10BP6 | 316LS.S. | 155 | 129 | 28.6 | 125 | by order | DN125(5") | |
| 160-DINFS | 159A12BQ6 | 316LS.S. | 183 | 154 | 28.6 | 150 | by order | DN150(6") | |
| 200-DINFS | 159A12BR6 | 316LS.S. | 233.5 | 204 | 28.6 | 200 | by order | DN200(8") |
卫生级管件产品最少询购数量为10个, 不便之处, 敬请见谅!!
