3A Inch Ferrule 14AMP
管接头
| select | ||||||||||||||||||
| Model No. | 6-3A14AMP | 10-3A14AMP | 16-3A14AMP | 25-3A14AMP | 32-3A14AMP | 40-3A14AMP | 50-3A14AMP | 63-3A14AMP | 80-3A14AMP | 100-3A14AMP | 160-3A14AMP | 160L-3A14AMP | 200-3A14AMP | 200L-3A14AMP | 250-3A14AMP | 250L-3A14AMP | 320-3A14AMP | 320L-3A14AMP |
| Parts No. | 159626046 | 159601076 | 159602096 | 159603116 | 159623126 | 159605136 | 159606146 | 159607156 | 159608166 | 159609186 | 159612206 | 159712206 | 159613216 | 159713216 | 159614226 | 159714226 | 159616236 | 159716236 |
| Material | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. |

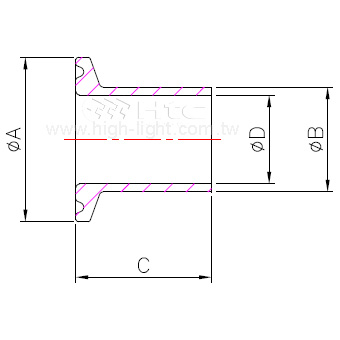

| A | 25 | 25 | 25 | 50.5 | 50.5 | 50.5 | 64 | 77.5 | 91 | 119 | 166.87 | 166.87 | 217.67 | 217.67 | 268.47 | 268.47 | 319.27 | 319.27 |
| B | 6.35 | 12.7 | 19.05 | 25.4 | 31.75 | 38.1 | 50.8 | 63.5 | 76.2 | 101.6 | 152.4 | 152.4 | 203.3 | 203.3 | 254 | 254 | 304.8 | 304.8 |
| C | 28.6 | 28.6 | 28.6 | 28.6 | 28.6 | 28.6 | 28.6 | 28.6 | 28.6 | 28.6 | 28.6 | 38.1 | 28.6 | 38.1 | 28.6 | 38.1 | 28.6 | 38.1 |
| D | 3.9 | 9.4 | 15.75 | 22.1 | 28.45 | 34.8 | 47.5 | 60.2 | 72.9 | 97.4 | 146.86 | 146.86 | 197.66 | 197.66 | 247.2 | 247.2 | 298 | 298 |
| Size | 1/4" | 1/2" | 3/4" | 1" | 1.25" | 1.5" | 2.0" | 2.5" | 3.0" | 4.0" | 6.0" | 6.0" | 8.0" | 8.0" | 10" | 10" | 12" | 12" |
| Select | Model No. | Parts No. | Material | A | B | C | D | Size |
| 6-3A14AMP | 159626046 | 316LS.S. | 25 | 6.35 | 28.6 | 3.9 | 1/4" | |
| 10-3A14AMP | 159601076 | 316LS.S. | 25 | 12.7 | 28.6 | 9.4 | 1/2" | |
| 16-3A14AMP | 159602096 | 316LS.S. | 25 | 19.05 | 28.6 | 15.75 | 3/4" | |
| 25-3A14AMP | 159603116 | 316LS.S. | 50.5 | 25.4 | 28.6 | 22.1 | 1" | |
| 32-3A14AMP | 159623126 | 316LS.S. | 50.5 | 31.75 | 28.6 | 28.45 | 1.25" | |
| 40-3A14AMP | 159605136 | 316LS.S. | 50.5 | 38.1 | 28.6 | 34.8 | 1.5" | |
| 50-3A14AMP | 159606146 | 316LS.S. | 64 | 50.8 | 28.6 | 47.5 | 2.0" | |
| 63-3A14AMP | 159607156 | 316LS.S. | 77.5 | 63.5 | 28.6 | 60.2 | 2.5" | |
| 80-3A14AMP | 159608166 | 316LS.S. | 91 | 76.2 | 28.6 | 72.9 | 3.0" | |
| 100-3A14AMP | 159609186 | 316LS.S. | 119 | 101.6 | 28.6 | 97.4 | 4.0" | |
| 160-3A14AMP | 159612206 | 316LS.S. | 166.87 | 152.4 | 28.6 | 146.86 | 6.0" | |
| 160L-3A14AMP | 159712206 | 316LS.S. | 166.87 | 152.4 | 38.1 | 146.86 | 6.0" | |
| 200-3A14AMP | 159613216 | 316LS.S. | 217.67 | 203.3 | 28.6 | 197.66 | 8.0" | |
| 200L-3A14AMP | 159713216 | 316LS.S. | 217.67 | 203.3 | 38.1 | 197.66 | 8.0" | |
| 250-3A14AMP | 159614226 | 316LS.S. | 268.47 | 254 | 28.6 | 247.2 | 10" | |
| 250L-3A14AMP | 159714226 | 316LS.S. | 268.47 | 254 | 38.1 | 247.2 | 10" | |
| 320-3A14AMP | 159616236 | 316LS.S. | 319.27 | 304.8 | 28.6 | 298 | 12" | |
| 320L-3A14AMP | 159716236 | 316LS.S. | 319.27 | 304.8 | 38.1 | 298 | 12" |
卫生级管件产品最少询购数量为10个, 不便之处, 敬请见谅!!
