3A Inch Ferrule 14WMP
管接头
| select | ||||||||||

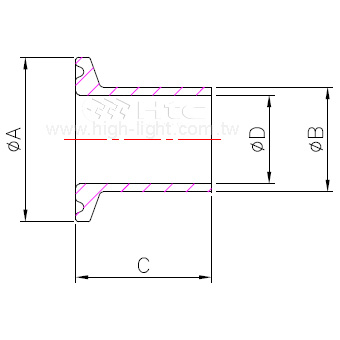

| Model No. | 6-3A14WMP | 10-3A14WMP | 16-3A14WMP | 25-3A14WMP | 32-3A14WMP | 40-3A14WMP | 50-3A14WMP | 63-3A14WMP | 80-3A14WMP | 100-3A14WMP |
| Parts No. | 159426046 | 159401076 | 159402096 | 159403116 | 159423126 | 159405136 | 159406146 | 159407156 | 159408166 | 159409186 |
| Material | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. |
| A | 25 | 25 | 25 | 50.5 | 50.5 | 50.5 | 64 | 77.5 | 91 | 119 |
| B | 6.35 | 12.7 | 19.05 | 25.4 | 31.75 | 38.1 | 50.8 | 63.5 | 76.2 | 101.6 |
| C | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 15.8 |
| D | 3.9 | 9.4 | 15.7 | 22.1 | 28.45 | 34.8 | 47.5 | 60.2 | 72.9 | 97.4 |
| Size | 1/4" | 1/2" | 3/4" | 1" | 1.25" | 1.5" | 2.0" | 2.5" | 3.0" | 4.0" |
| Select | Model No. | Parts No. | Material | A | B | C | D | Size |
| 6-3A14WMP | 159426046 | 316LS.S. | 25 | 6.35 | 12.7 | 3.9 | 1/4" | |
| 10-3A14WMP | 159401076 | 316LS.S. | 25 | 12.7 | 12.7 | 9.4 | 1/2" | |
| 16-3A14WMP | 159402096 | 316LS.S. | 25 | 19.05 | 12.7 | 15.7 | 3/4" | |
| 25-3A14WMP | 159403116 | 316LS.S. | 50.5 | 25.4 | 12.7 | 22.1 | 1" | |
| 32-3A14WMP | 159423126 | 316LS.S. | 50.5 | 31.75 | 12.7 | 28.45 | 1.25" | |
| 40-3A14WMP | 159405136 | 316LS.S. | 50.5 | 38.1 | 12.7 | 34.8 | 1.5" | |
| 50-3A14WMP | 159406146 | 316LS.S. | 64 | 50.8 | 12.7 | 47.5 | 2.0" | |
| 63-3A14WMP | 159407156 | 316LS.S. | 77.5 | 63.5 | 12.7 | 60.2 | 2.5" | |
| 80-3A14WMP | 159408166 | 316LS.S. | 91 | 76.2 | 12.7 | 72.9 | 3.0" | |
| 100-3A14WMP | 159409186 | 316LS.S. | 119 | 101.6 | 15.8 | 97.4 | 4.0" |
卫生级管件产品最少询购数量为10个, 不便之处, 敬请见谅!!
