KF法兰有波纹管附感应器(美规)
气动式Y型阀门
| select | ||||

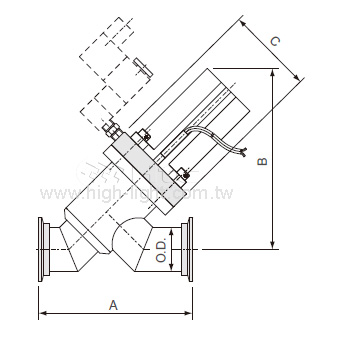

| Model No. | YVBS-KF16-P | YVBS-KF25-P | YVBS-KF40-P | YVBS-KF50-P |
| Parts No. | 304109110216 | 304111110216 | 304113110216 | 304114110216 |
| A"(mm) | 4.00"(101.6) | 4.20"(106.8) | 5.12"(130) | 7.00"(177.8) |
| B"(mm) | 4.73"(120) | 4.73"(120) | 6.17"(156.8) | 7.43"(188.8) |
| C"(mm) | 2.24"(56.8) | 2.24"(56.8) | 2.98"(75.8) | 3.48"(88.4) |
| O.D. | 0.75"(19.05) | 1.00"(25.4) | 1.50"(38.1) | 2.00"(50.8) |
| Select | Model No. | Parts No. | A"(mm) | B"(mm) | C"(mm) | O.D. |
| YVBS-KF16-P | 304109110216 | 4.00"(101.6) | 4.73"(120) | 2.24"(56.8) | 0.75"(19.05) | |
| YVBS-KF25-P | 304111110216 | 4.20"(106.8) | 4.73"(120) | 2.24"(56.8) | 1.00"(25.4) | |
| YVBS-KF40-P | 304113110216 | 5.12"(130) | 6.17"(156.8) | 2.98"(75.8) | 1.50"(38.1) | |
| YVBS-KF50-P | 304114110216 | 7.00"(177.8) | 7.43"(188.8) | 3.48"(88.4) | 2.00"(50.8) |
