手动连杆式-小型-超高真空闸阀
超高真空闸阀(不涂润滑油)
| select | ||
| Model No. | GVB-SS-CF35-M | GVB-SS-CF50-M |
| Parts No. | GB3A111 | GB3B111 |

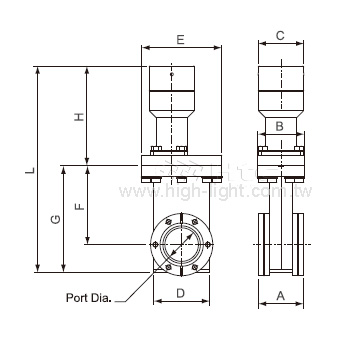

| A | 45.4 | 56 |
| B | 52 | 56 |
| C | 51 | 51 |
| D | 63 | 81 |
| E | 90 | 104 |
| F | 88 | 123 |
| G | 119 | 167 |
| H | 113 | 129 |
| L | 232 | 296 |
| Actuator type | M* | M* |
| Bolt Size*No | M6x6 | M8x8 |
| Bolt P.C.D. | 58.7 | 72.4 |
| Bonnet seal | Metal | Metal |
| Flange O.D. | 69.5 | 86 |
| Port Dia. | 37.5 | 50 |
| Torque(kg-cm) | 170 | 210 |
| Thread Depth | 10 | 10 |
| Select | Model No. | Parts No. | A | B | C | D | E | F | G | H | L | Actuator type | Bolt Size*No | Bolt P.C.D. | Bonnet seal | Flange O.D. | Port Dia. | Torque(kg-cm) | Thread Depth |
| GVB-SS-CF35-M | GB3A111 | 45.4 | 52 | 51 | 63 | 90 | 88 | 119 | 113 | 232 | M* | M6x6 | 58.7 | Metal | 69.5 | 37.5 | 170 | 10 | |
| GVB-SS-CF50-M | GB3B111 | 56 | 56 | 51 | 81 | 104 | 123 | 167 | 129 | 296 | M* | M8x8 | 72.4 | Metal | 86 | 50 | 210 | 10 |
