CF275 超高真空闸阀-气动连杆式含波纹管与极限开关
超高真空闸阀(不涂润滑油)

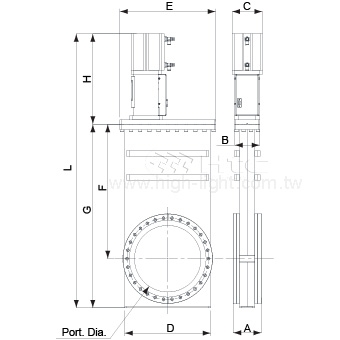

| select | |
| Model No. | GVBLS-SS-CF275-P |
| Parts No. | GB3H311NB |
| A | 106.4 |
| B | 95 |
| C | 114 |
| D | 323 |
| E | 360 |
| F | 505 |
| G | 690 |
| H | 340 |
| L | 1030 |
| Bolt Size*No | M10 x 30 |
| Bolt P.C.D. | 306.3 |
| Bonnet seal | Metal |
| Flange O.D. | 336.5 |
| Port Dia. | 250 |
| Torque(kg-cm) | 360 |
| Thread Depth | 24 |
| Select | Model No. | Parts No. | A | B | C | D | E | F | G | H | L | Bolt Size*No | Bolt P.C.D. | Bonnet seal | Flange O.D. | Port Dia. | Torque(kg-cm) | Thread Depth |
| GVBLS-SS-CF275-P | GB3H311NB | 106.4 | 95 | 114 | 323 | 360 | 505 | 690 | 340 | 1030 | M10 x 30 | 306.3 | Metal | 336.5 | 250 | 360 | 24 |
UHV-GATE VALVES (Limit Switch) / unlubricated-Ball groove mechanism
CF Flange (Large type)UHV Series (Pneumatically Actuated with Bellows, Metal Bonnet Seal ,Limit Switch)
Size: CF275
Bonnet Seal: Metal
|
Material |
Body |
304 S.S. |
|||
|
Carriage |
304 S.S. |
||||
|
Gate |
304 S.S. |
||||
|
Bellows |
AM350 |
||||
|
Cycle Life |
size under 4”(included) |
100,000 |
|||
|
size above 4” |
50,000 |
||||
|
Helium leak rates at 1 atm differential |
＜5×10-10 mbar .l /sec for gasket seal |
||||
|
Bake Temperature |
Valve body |
Open |
200℃ |
||
|
Close |
150℃ |
||||
|
Actuator |
Pneumatic |
≦ 80℃ |
|||
|
Pressure Range(mbar) |
1x10-10 ～1000 |
||||
|
Maximum ΔP(mbar) |
27 before opening |
||||
|
Standard Seal |
Gate |
Viton O-ring |
|||
|
Bonnet |
OFHC copper gasket |
||||
|
Compressed air supply tube connection pressure range |
Φ6mm |
||||
|
4~6Kg/cm2(overpressure) |
|||||
|
Actuator |
Pneumatic |
||||
|

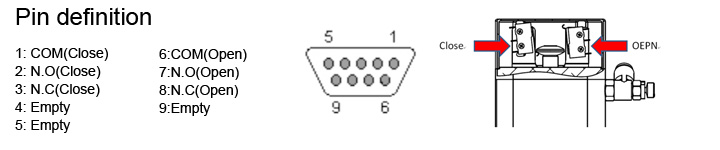

Connector |
D-sub Female 9 pins Current Rating |
3A 110VAC |
|||
|
5A 24VDC |
|||||
|
Surface Treatment |
Scotch Polished |
||||
|
Options |
a. Pneumatic control solenoid valve |
||||
SolidWorks 2D & 3D 产品图稿
| Model No. | GVBLS-SS-CF275-P |
| Parts No. | GB3H311NB |
| Download Type | DWG | STEP |
