小型-高真空闸阀-气动连杆式含波纹管与极限开关
高真空闸阀(涂润滑油)
select | ||

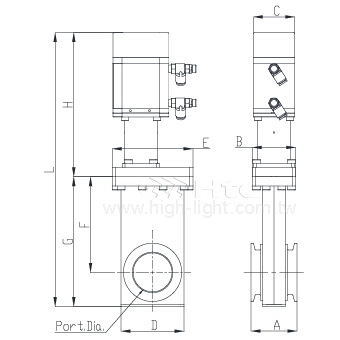

Model No. | GVBLS-SS-KF40-P | GVBLS-SS-KF50-P |
Parts No. | GA1A312NB | GA1B312NB |
A | 50 | 59 |
B | 52 | 56 |
C | 53 | 53 |
D | 63 | 81 |
E | 90 | 104 |
F | 88 | 123 |
G | 119 | 167 |
H | 166.5 | 185.5 |
L | 285.5 | 352.5 |
Bonnet seal | Viton | Viton |
Flange O.D. | 55 | 75 |
Port Dia. | 38 | 50 |
Select | Model No. | Parts No. | A | B | C | D | E | F | G | H | L | Bonnet seal | Flange O.D. | Port Dia. |
GVBLS-SS-KF40-P | GA1A312NB | 50 | 52 | 53 | 63 | 90 | 88 | 119 | 166.5 | 285.5 | Viton | 55 | 38 | |
GVBLS-SS-KF50-P | GA1B312NB | 59 | 56 | 53 | 81 | 104 | 123 | 167 | 185.5 | 352.5 | Viton | 75 | 50 |
