ISO250高真空闸阀-气动连杆式含波纹管与极限开关
高真空闸阀(涂润滑油)

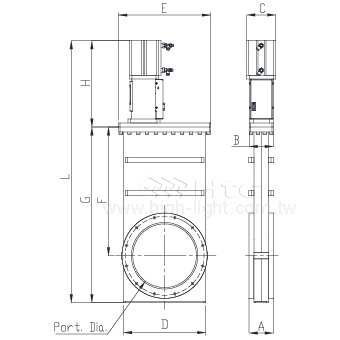

| select | |
| Model No. | GVBLS-SS-ISO250-P |
| Parts No. | GA4H311NB |
| A | 95.4 |
| B | 95 |
| C | 114 |
| D | 323 |
| E | 360 |
| F | 505 |
| G | 690 |
| H | 340 |
| L | 1030 |
| Bolt Size*No | M10x12 |
| Bolt P.C.D. | 310 |
| Bonnet seal | Viton |
| Flange O.D. | 335 |
| Port Dia. | 250 |
| Thread Depth | 18 |
| Select | Model No. | Parts No. | A | B | C | D | E | F | G | H | L | Bolt Size*No | Bolt P.C.D. | Bonnet seal | Flange O.D. | Port Dia. | Thread Depth |
| GVBLS-SS-ISO250-P | GA4H311NB | 95.4 | 95 | 114 | 323 | 360 | 505 | 690 | 340 | 1030 | M10x12 | 310 | Viton | 335 | 250 | 18 |
