KF法兰蝶阀
Htc日扬手动真空蝶阀
| select | ||||

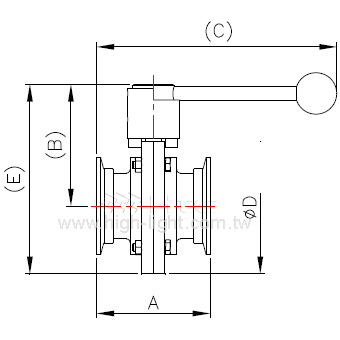

| Model No. | KF16BFV | KF25BFV | KF40BFV | KF50BFV |
| Parts No. | 3202092101111 | 3202112101111 | 3202132101111 | 3202142101111 |
| A | 75.6 | 75.6 | 83.6 | 87.6 |
| B | 69.5 | 69 | 75.6 | 79.3 |
| C | 157.8 | 157.8 | 161.8 | 163.8 |
| D | 79 | 80 | 90 | 100 |
| E | 109 | 109 | 116.6 | 129.3 |
| Connector | KF16 | KF25 | KF40 | KF50 |
| Size | 0.75"(19.05) | 1”(25.4) | 1.5”(38.1) | 2”(50.8) |
| Select | Model No. | Parts No. | A | B | C | D | E | Connector | Size |
| KF16BFV | 3202092101111 | 75.6 | 69.5 | 157.8 | 79 | 109 | KF16 | 0.75"(19.05) | |
| KF25BFV | 3202112101111 | 75.6 | 69 | 157.8 | 80 | 109 | KF25 | 1”(25.4) | |
| KF40BFV | 3202132101111 | 83.6 | 75.6 | 161.8 | 90 | 116.6 | KF40 | 1.5”(38.1) | |
| KF50BFV | 3202142101111 | 87.6 | 79.3 | 163.8 | 100 | 129.3 | KF50 | 2”(50.8) |
产品规格
- 阀门尺寸: 0.75” to 2”(19.05mm~50.8mm)
- 法兰：KF(NW)
- 压力范围： 1,000mbar ~ 1x10-4mbar
- 泄漏率: 5x10-7mbar.l/s
- 本体材质：304 S.S.
- 密封材质：EPDM
- 运转寿命：1,000
- 温度: Body≦120oC
