异径三通管
三通 Tee
select | ||||||||||||

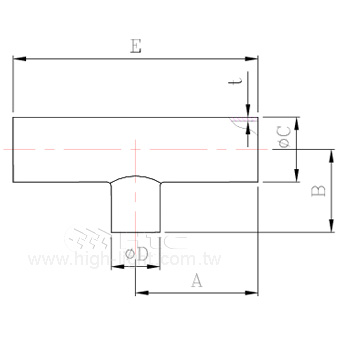

Model No. | 25UT16A | 40UT16A | 40UT25A | 50UT16A | 50UT25A | 50UT40A | 80UT63A | 100UT50A | 100UT63A | 100UT80A | 150UT80A | 150UT100A |
Parts No. | 16170030024 | 16170050024 | 16170050034 | 16170060024 | 16170060034 | 16170060054 | 16170080074 | 16170090064 | 16170090074 | 16170090084 | 16170110084 | 16170110094 |
Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
A | 48.2 | 57.2 | 57.2 | 76.2 | 76.2 | 76.2 | 82.5 | 98.4 | 98.4 | 98.4 | 127 | 127 |
B | 33.7 | 48.2 | 54 | 54.4 | 60.3 | 63.5 | 82.5 | 101.6 | 95.3 | 95.3 | 120.7 | 123.8 |
C | 25.4 | 38.1 | 38.1 | 50.8 | 50.8 | 50.8 | 76.2 | 101.6 | 101.6 | 101.6 | 152.4 | 152.4 |
D | 19.05 | 19.05 | 25.4 | 19.05 | 25.4 | 38.1 | 63.5 | 50.8 | 63.5 | 76.2 | 76.2 | 101.6 |
E | 96.4 | 114.3 | 114.3 | 152.4 | 152.4 | 152.4 | 165 | 196.8 | 196.8 | 196.8 | 254 | 254 |
t | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 2 | 2 | 2 | 2.77 | 2.77 |
Select | Model No. | Parts No. | Material | A | B | C | D | E | t |
25UT16A | 16170030024 | 304 S.S. | 48.2 | 33.7 | 25.4 | 19.05 | 96.4 | 1.65 | |
40UT16A | 16170050024 | 304 S.S. | 57.2 | 48.2 | 38.1 | 19.05 | 114.3 | 1.65 | |
40UT25A | 16170050034 | 304 S.S. | 57.2 | 54 | 38.1 | 25.4 | 114.3 | 1.65 | |
50UT16A | 16170060024 | 304 S.S. | 76.2 | 54.4 | 50.8 | 19.05 | 152.4 | 1.65 | |
50UT25A | 16170060034 | 304 S.S. | 76.2 | 60.3 | 50.8 | 25.4 | 152.4 | 1.65 | |
50UT40A | 16170060054 | 304 S.S. | 76.2 | 63.5 | 50.8 | 38.1 | 152.4 | 1.65 | |
80UT63A | 16170080074 | 304 S.S. | 82.5 | 82.5 | 76.2 | 63.5 | 165 | 1.65 | |
100UT50A | 16170090064 | 304 S.S. | 98.4 | 101.6 | 101.6 | 50.8 | 196.8 | 2 | |
100UT63A | 16170090074 | 304 S.S. | 98.4 | 95.3 | 101.6 | 63.5 | 196.8 | 2 | |
100UT80A | 16170090084 | 304 S.S. | 98.4 | 95.3 | 101.6 | 76.2 | 196.8 | 2 | |
150UT80A | 16170110084 | 304 S.S. | 127 | 120.7 | 152.4 | 76.2 | 254 | 2.77 | |
150UT100A | 16170110094 | 304 S.S. | 127 | 123.8 | 152.4 | 101.6 | 254 | 2.77 |
