三通管-CF法兰接口-固定
三通 Tee
| select | |||||

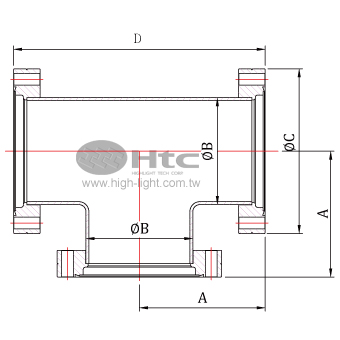

| Model No. | CF16T | CF35T | CF63T | CF100T | CF150T |
| Parts No. | 16158028024 | 16158048044 | 16158078074 | 16158098094 | 16158118114 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 37.5 | 62.5 | 85.7 | 109.5 | 139.7 |
| B | 19.05 | 38.1 | 63.5 | 101.6 | 152.4 |
| C | 33.8 | 69.5 | 113.6 | 151.6 | 202.5 |
| D | 75 | 125 | 171.4 | 219 | 279.4 |
| Select | Model No. | Parts No. | Material | A | B | C | D |
| CF16T | 16158028024 | 304 S.S. | 37.5 | 19.05 | 33.8 | 75 | |
| CF35T | 16158048044 | 304 S.S. | 62.5 | 38.1 | 69.5 | 125 | |
| CF63T | 16158078074 | 304 S.S. | 85.7 | 63.5 | 113.6 | 171.4 | |
| CF100T | 16158098094 | 304 S.S. | 109.5 | 101.6 | 151.6 | 219 | |
| CF150T | 16158118114 | 304 S.S. | 139.7 | 152.4 | 202.5 | 279.4 |
■零件号（零件号）加“ K”表示喷砂表面
■零件号（零件号）加“ L”表示抛光表面
