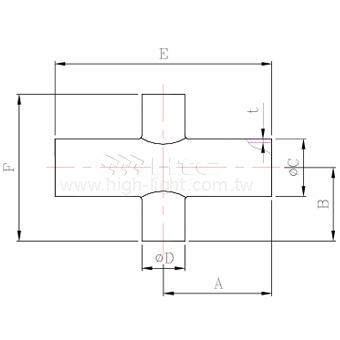

异径四通管
四通 Crosses
| select | ||||||||||||
| Model No. | 25UX16A | 40UX16A | 40UX25A | 50UX16A | 50UX25A | 50UX40A | 80UX63A | 100UX50A | 100UX63A | 100UX80A | 150UX80A | 150UX100A |
| Parts No. | 16210030024 | 16210050024 | 16210050034 | 16210060024 | 16210060034 | 16210060054 | 16210080074 | 16210090064 | 16210090074 | 16210090084 | 16210110084 | 16210110094 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 48.2 | 57.2 | 57.2 | 76.2 | 76.2 | 76.2 | 82.5 | 98.4 | 98.4 | 98.4 | 127 | 127 |
| B | 33.7 | 48.2 | 54 | 54.4 | 60.3 | 63.5 | 82.5 | 101.6 | 95.3 | 95.3 | 120.7 | 123.8 |
| C | 25.4 | 38.1 | 38.1 | 50.8 | 50.8 | 50.8 | 76.2 | 101.6 | 101.6 | 101.6 | 152.4 | 152.4 |
| D | 19.05 | 19.05 | 25.4 | 19.05 | 25.4 | 38.1 | 63.5 | 50.8 | 63.5 | 76.2 | 76.2 | 101.6 |
| E | 96.4 | 114.3 | 114.3 | 152.4 | 152.4 | 152.4 | 165 | 196.8 | 196.8 | 196.8 | 254 | 254 |
| F | 67.4 | 96.4 | 108 | 108.8 | 120.6 | 127 | 165 | 203.2 | 190.6 | 190.6 | 241.4 | 247.6 |
| t | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 2 | 2 | 2 | 2.77 | 2.77 |
| Select | Model No. | Parts No. | Material | A | B | C | D | E | F | t |
| 25UX16A | 16210030024 | 304 S.S. | 48.2 | 33.7 | 25.4 | 19.05 | 96.4 | 67.4 | 1.65 | |
| 40UX16A | 16210050024 | 304 S.S. | 57.2 | 48.2 | 38.1 | 19.05 | 114.3 | 96.4 | 1.65 | |
| 40UX25A | 16210050034 | 304 S.S. | 57.2 | 54 | 38.1 | 25.4 | 114.3 | 108 | 1.65 | |
| 50UX16A | 16210060024 | 304 S.S. | 76.2 | 54.4 | 50.8 | 19.05 | 152.4 | 108.8 | 1.65 | |
| 50UX25A | 16210060034 | 304 S.S. | 76.2 | 60.3 | 50.8 | 25.4 | 152.4 | 120.6 | 1.65 | |
| 50UX40A | 16210060054 | 304 S.S. | 76.2 | 63.5 | 50.8 | 38.1 | 152.4 | 127 | 1.65 | |
| 80UX63A | 16210080074 | 304 S.S. | 82.5 | 82.5 | 76.2 | 63.5 | 165 | 165 | 1.65 | |
| 100UX50A | 16210090064 | 304 S.S. | 98.4 | 101.6 | 101.6 | 50.8 | 196.8 | 203.2 | 2 | |
| 100UX63A | 16210090074 | 304 S.S. | 98.4 | 95.3 | 101.6 | 63.5 | 196.8 | 190.6 | 2 | |
| 100UX80A | 16210090084 | 304 S.S. | 98.4 | 95.3 | 101.6 | 76.2 | 196.8 | 190.6 | 2 | |
| 150UX80A | 16210110084 | 304 S.S. | 127 | 120.7 | 152.4 | 76.2 | 254 | 241.4 | 2.77 | |
| 150UX100A | 16210110094 | 304 S.S. | 127 | 123.8 | 152.4 | 101.6 | 254 | 247.6 | 2.77 |
