四通管-CF法兰接口-固定
四通 Crosses
| select | |||||

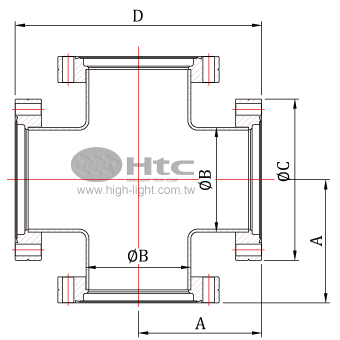

| Model No. | CF16X | CF35X | CF63X | CF100X | CF150X |
| Parts No. | 16198028024 | 16198048044 | 16198078074 | 16198098094 | 16198118114 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 37.5 | 62.5 | 85.7 | 109.5 | 139.7 |
| B | 19.05 | 38.1 | 63.5 | 101.6 | 152.4 |
| C | 33.8 | 69.5 | 113.6 | 151.6 | 202.5 |
| D | 75 | 125 | 171.4 | 219 | 279.4 |
| Select | Model No. | Parts No. | Material | A | B | C | D |
| CF16X | 16198028024 | 304 S.S. | 37.5 | 19.05 | 33.8 | 75 | |
| CF35X | 16198048044 | 304 S.S. | 62.5 | 38.1 | 69.5 | 125 | |
| CF63X | 16198078074 | 304 S.S. | 85.7 | 63.5 | 113.6 | 171.4 | |
| CF100X | 16198098094 | 304 S.S. | 109.5 | 101.6 | 151.6 | 219 | |
| CF150X | 16198118114 | 304 S.S. | 139.7 | 152.4 | 202.5 | 279.4 |
■零件号（零件号）加“ K”表示喷砂表面
■零件号（零件号）加“ L”表示抛光表面
