KF16-KF63 炼条式卡箍
KF法兰卡箍卡钳系列
| select | |||||

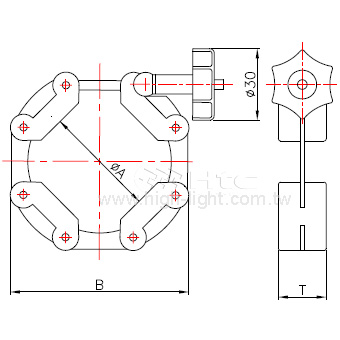

| Model No. | CC-N-16 | CC-N-25 | CC-N-40 | CC-N-50 | CC-N-63 |
| Parts No. | 21020511 | 21020611 | 21020811 | 21020911 | 21021011 |
| Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| A | 22 | 32 | 46 | 69 | 78 |
| B | 56 | 66 | 80 | 100 | 112 |
| T | 20.3 | 20.3 | 20.3 | 20.3 | 20.3 |
| Fit Flange | KF10/KF16 | KF25 | KF40 | KF50 | KF63 |
| Select | Model No. | Parts No. | Material | A | B | T | Fit Flange |
| CC-N-16 | 21020511 | Aluminum | 22 | 56 | 20.3 | KF10/KF16 | |
| CC-N-25 | 21020611 | Aluminum | 32 | 66 | 20.3 | KF25 | |
| CC-N-40 | 21020811 | Aluminum | 46 | 80 | 20.3 | KF40 | |
| CC-N-50 | 21020911 | Aluminum | 69 | 100 | 20.3 | KF50 | |
| CC-N-63 | 21021011 | Aluminum | 78 | 112 | 20.3 | KF63 |
Feature:
- 连接件由压铸铝合金制成
- 快速打开和关闭夹具
- 夹具设计允许高密封封合力
