KF中心圈(加网)
KF中心圈系列
| select | ||||||||||||||
| Model No. | KF16M3CRVS | KF25M3CRVS | KF40M3CRVS | KF50M3CRVS | KF63M3CRVS | KF80M3CRVS | KF100M3CRVS | KF16M3CRNS | KF25M3CRNS | KF40M3CRNS | KF50M3CRNS | KF63M3CRNS | KF80M3CRNS | KF100M3CRNS |
| Parts No. | 183105411 | 183106411 | 183108411 | 183109411 | 183110411 | 183111411 | 183112411 | 183305412 | 183306412 | 183308412 | 183309412 | 183310412 | 183311412 | 183312412 |

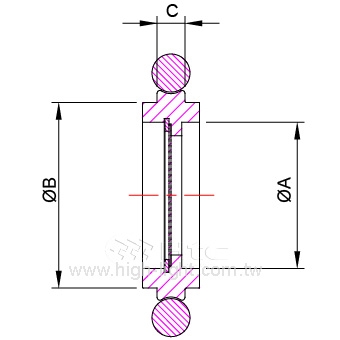

| A | 12 | 20.5 | 35.8 | 46.3 | 60.5 | 73.6 | 91.8 | 12 | 20.5 | 35.8 | 46.3 | 60.5 | 73.6 | 91.8 |
| B | 17 | 26 | 41 | 52 | 69.6 | 82.6 | 101.6 | 17 | 26 | 41 | 52 | 69.6 | 82.6 | 101.6 |
| C | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 |
| Material-C/R | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| Material-O'Ring | Viton | Viton | Viton | Viton | Viton | Viton | Viton | NBR | NBR | NBR | NBR | NBR | NBR | NBR |
| Mesh/ln*2 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 |
| O'Ring Size | AS-314 | AS-320 | AS-326 | AS-330 | AS-337 | AS-341 | AS-347 | AS-314 | AS-320 | AS-326 | AS-330 | AS-337 | AS-341 | AS-347 |
| Select | Model No. | Parts No. | A | B | C | Material-C/R | Material-O'Ring | Mesh/ln*2 | O'Ring Size |
| KF16M3CRVS | 183105411 | 12 | 17 | 3.9 | 304 S.S. | Viton | 900 | AS-314 | |
| KF25M3CRVS | 183106411 | 20.5 | 26 | 3.9 | 304 S.S. | Viton | 900 | AS-320 | |
| KF40M3CRVS | 183108411 | 35.8 | 41 | 3.9 | 304 S.S. | Viton | 900 | AS-326 | |
| KF50M3CRVS | 183109411 | 46.3 | 52 | 3.9 | 304 S.S. | Viton | 900 | AS-330 | |
| KF63M3CRVS | 183110411 | 60.5 | 69.6 | 3.9 | 304 S.S. | Viton | 900 | AS-337 | |
| KF80M3CRVS | 183111411 | 73.6 | 82.6 | 3.9 | 304 S.S. | Viton | 900 | AS-341 | |
| KF100M3CRVS | 183112411 | 91.8 | 101.6 | 3.9 | 304 S.S. | Viton | 900 | AS-347 | |
| KF16M3CRNS | 183305412 | 12 | 17 | 3.9 | 304 S.S. | NBR | 900 | AS-314 | |
| KF25M3CRNS | 183306412 | 20.5 | 26 | 3.9 | 304 S.S. | NBR | 900 | AS-320 | |
| KF40M3CRNS | 183308412 | 35.8 | 41 | 3.9 | 304 S.S. | NBR | 900 | AS-326 | |
| KF50M3CRNS | 183309412 | 46.3 | 52 | 3.9 | 304 S.S. | NBR | 900 | AS-330 | |
| KF63M3CRNS | 183310412 | 60.5 | 69.6 | 3.9 | 304 S.S. | NBR | 900 | AS-337 | |
| KF80M3CRNS | 183311412 | 73.6 | 82.6 | 3.9 | 304 S.S. | NBR | 900 | AS-341 | |
| KF100M3CRNS | 183312412 | 91.8 | 101.6 | 3.9 | 304 S.S. | NBR | 900 | AS-347 |
