KF中心圈转接O'Ring
KF中心圈系列
| select | ||||||||||||

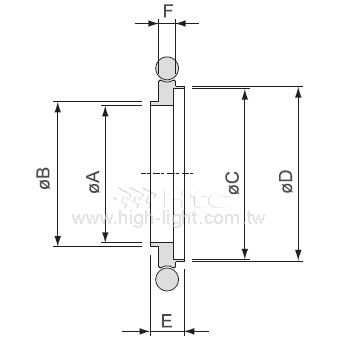

| Model No. | KF10CR16VS | KF20CR25VS | KF32CR40VS | KF10CR16VA | KF20CR25VA | KF32CR40VA | KF10CR16NS | KF20CR25NS | KF32CR40NS | KF10CR16NA | KF20CR25NA | KF32CR40NA |
| Parts No. | 19011A411 | 19011B411 | 19011C411 | 19011A111 | 19011B111 | 19011C111 | 19031A412 | 19031B412 | 19031C412 | 19031A112 | 19031B112 | 19031C112 |
| A | 10 | 20 | 32 | 10 | 20 | 32 | 10 | 20 | 32 | 10 | 20 | 32 |
| B | 12 | 22 | 34 | 12 | 22 | 34 | 12 | 22 | 34 | 12 | 22 | 34 |
| C | 16 | 25 | 40 | 16 | 25 | 40 | 16 | 25 | 40 | 16 | 25 | 40 |
| D | 17 | 26 | 41 | 17 | 26 | 41 | 17 | 26 | 41 | 17 | 26 | 41 |
| E | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| F | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 |
| Material-C/R | 304 S.S. | 304 S.S. | 304 S.S. | Al | Al | Al | 304 S.S. | 304 S.S. | 304 S.S. | Al | Al | Al |
| Material-O'Ring | Viton | Viton | Viton | Viton | Viton | Viton | NBR | NBR | NBR | NBR | NBR | NBR |
| O'Ring Size | AS-314 | AS-320 | AS-326 | AS-314 | AS-320 | AS-326 | AS-314 | AS-320 | AS-326 | AS-314 | AS-320 | AS-326 |
| Select | Model No. | Parts No. | A | B | C | D | E | F | Material-C/R | Material-O'Ring | O'Ring Size |
| KF10CR16VS | 19011A411 | 10 | 12 | 16 | 17 | 8 | 3.9 | 304 S.S. | Viton | AS-314 | |
| KF20CR25VS | 19011B411 | 20 | 22 | 25 | 26 | 8 | 3.9 | 304 S.S. | Viton | AS-320 | |
| KF32CR40VS | 19011C411 | 32 | 34 | 40 | 41 | 8 | 3.9 | 304 S.S. | Viton | AS-326 | |
| KF10CR16VA | 19011A111 | 10 | 12 | 16 | 17 | 8 | 3.9 | Al | Viton | AS-314 | |
| KF20CR25VA | 19011B111 | 20 | 22 | 25 | 26 | 8 | 3.9 | Al | Viton | AS-320 | |
| KF32CR40VA | 19011C111 | 32 | 34 | 40 | 41 | 8 | 3.9 | Al | Viton | AS-326 | |
| KF10CR16NS | 19031A412 | 10 | 12 | 16 | 17 | 8 | 3.9 | 304 S.S. | NBR | AS-314 | |
| KF20CR25NS | 19031B412 | 20 | 22 | 25 | 26 | 8 | 3.9 | 304 S.S. | NBR | AS-320 | |
| KF32CR40NS | 19031C412 | 32 | 34 | 40 | 41 | 8 | 3.9 | 304 S.S. | NBR | AS-326 | |
| KF10CR16NA | 19031A112 | 10 | 12 | 16 | 17 | 8 | 3.9 | Al | NBR | AS-314 | |
| KF20CR25NA | 19031B112 | 20 | 22 | 25 | 26 | 8 | 3.9 | Al | NBR | AS-320 | |
| KF32CR40NA | 19031C112 | 32 | 34 | 40 | 41 | 8 | 3.9 | Al | NBR | AS-326 |
