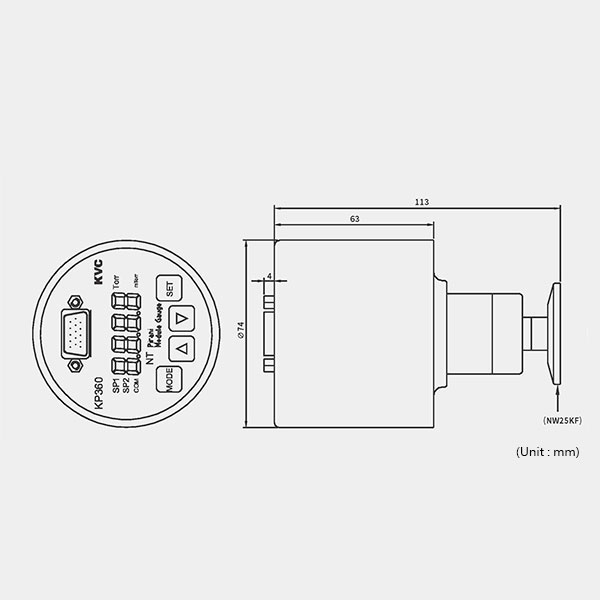

KP360 Pirani Vacuum Module Gauge
Vacuum Module Gauge
Product
- It can be used in various gas atmospheres such as Ar and He etc.
- The Series KP360 is a combined Vacuum Gauge made using Pirani Sensor and Piezoresistve Silicon Pressure Sensor.
- Torr or mTorr automatic switching
SPECIFICATION
| Analog output | Log scale (0 ~ 7.18Vdc) Linear Scale ( 0 ~ 10Vdc ) |
| SET POINT RELAYS | 2 Point SPST (1A / 30VDC ,0.5A / 125VAC ) |
| POWER REQUIRED | DC24V / 200mA |
| OPTIONAL | 485 ASCII / 485 MODBUS |
| Application Sensor | KVC310 NTA PIRANI Gauge |
| Sensor Fitting Size | 1/8NPT, 15mmO,D, NW16KF, NW25KF 1/4VCR, 1.33CF, 2.75CF, 1/2VCR |
| Measurement Range | 0.1mTorr to 1500Tor |
