CDM610 Ceramic Vacuum Gauge 50Torr
Vacuum Module Gauge
Product
- The KVC610 Ceramic Vacuum Sensor is a high-quality,gas-resistant, high-precision, durable, and reliable performance.
- The KVC630 CDM Vacuum Sensor is highly accurate,reliable, repeatable, and durable with KVC patented technology.
SPECIFICATION
| Analog output | Log scale (0 ~ 3.7Vdc) Linear Scale ( 0 ~ 10Vdc ) |
| SET POINT RELAYS | 2 Point SPST (1A / 30VDC ,0.5A / 125VAC ) |
| POWER REQUIRED | DC24V / 200mA |
| OPTIONAL | 485 ASCII / 485 MODBUS |
| Application Sensor | KVC610 Ceramic Sensor |

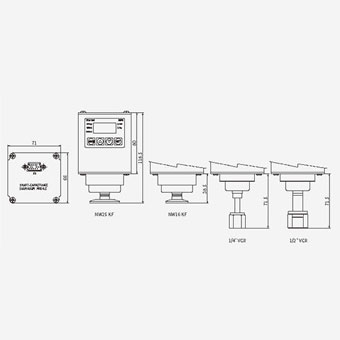

| Sensor Fitting Size | 1/8NPT, 15mmO,D, NW16KF, NW25KF 1/4VCR, 1.33CF, 2.75CF, 1/2VCR |
| Measurement Range | 1.0E-2 to 50Torr |
