Custom horizontal L-MOTION Rectangular Transfer valves
Rectangular valve and transfer doors
| select | |
| Model No. | Customized |
| Parts No. | Special product number |
| Note | Please check box, Send Inquiry to contact us. |
| Select | Model No. | Parts No. | Note |
| Customized | Special product number | Please check box, Send Inquiry to contact us. |

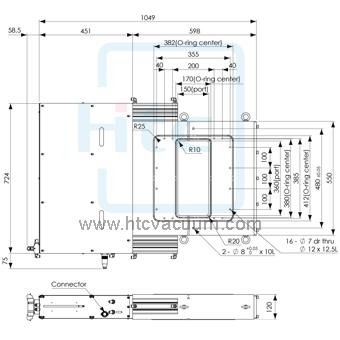

Technical Data
|
Name |
150 x 360 Transfer Valve |
|
Open Size |
150 x 360 mm |
|
Material |
Valve body and gate plate: A6061-T6 Bonnet & transfer arm: 304S.S. Bellows: AM350 O-ring: Viton |
|
leak rate |
Body < 1 x 10-9 mbar*l/s |
|
Seal < 1 x 10-9 mbar*l/s |
|
|
Pressure Range |
1 x 10-8 mbar to 1 bar |
|
Driving Shaft |
Bellows |
|
Differential pressure on the gate |
Positive pressure difference ≦ 1 bar |
|
Reverse pressure difference ≦ 10 mbar |
|
|
Differential pressure at opening |
< 10 mbar |
|
Temperature |
Body & Seal plate< 120℃ Driving module < 60℃ |
|
Compress air pressure |
Pneumatic 5~6 Kg/cm² |
|
Standard Seal |
Gate O-ring : Viton |
|
Open/Close sensor |
DC4-24(V)) or AC4-240(V), Amps:5-40 mA |
|
Solenoid Power (Optional) |
DC24(V) ,AC24(V),AC110(V),AC220(V) |
|
Opening/Close time |
open time ≦ 5 sec close time ≦ 5 sec |
|
Cycle life* |
500,000 cycle |
|
Mounting position |
Actuator Left or right |
Mounting position
