L-motion Large Rectangular Door valves (L-motion Large Door Slit valves)
Dimension
Technical Data
|
Name |
Rectangle Door Valve- 50x1320 |
|
Open Size |
50 x 1320 mm |
|
Material |
Seal plate ： 304 S.S. |
|
Leak rate |
Seal < 1x10-9 mbar. l/sec |
|
Pressure Range |
1x10-8 mbar to 1 bar |
|
Differential pressure on the gate |
In close direction ≦ 1 bar |
|
Differential pressure at opening |
< 10 mbar |
|
Temperature |
Seal plate < 120℃ |
|
Compress air pressure |
Pneumatic 5~6 Kg/cm² |
|
Standard Seal |
Seal plate O-ring : Viton |
|
Open/Close sensor |
DC4-24(V)) or AC4-240(V), Amps:5-40 mA |
|
Solenoid Power (Optional) |
DC24(V) ,AC24(V),AC110(V),AC220(V) |
|
Opening/Close time |
open time ≦ 3.5 sec |
|
Cycle life (*) |
1,000,000 cycle |
|
Mounting position |
Actuator up, down |
* The Cycle life of valve is apply to room temperature 25°C and clean environment, and the opening action apply to be less than 10 mbar pressure difference. (If the opening action exceeds the pressure difference of 10 mbar, it is not covered by this guarantee.)
.

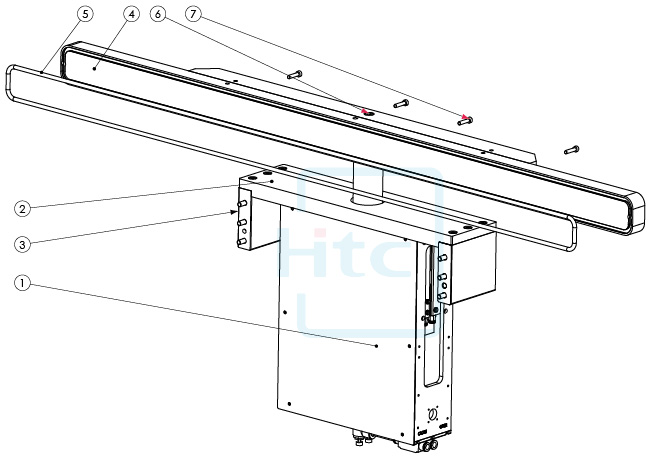

Functional principle
 |
|
