Vacuum Ball Valve

Category
Specification

Vacuum Ball Valves

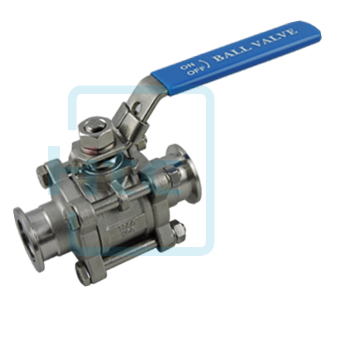

KF Ball Valve-Manually

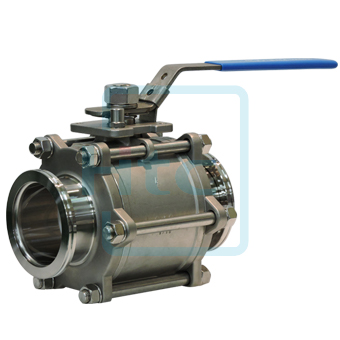

ISO ball valves-Manually

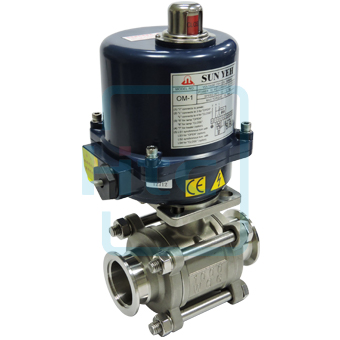

KF Ball Valve - Motor Drive

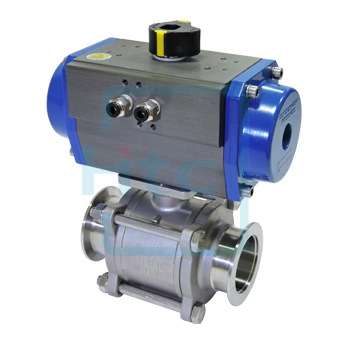

KF Ball Valve - Double Pneumatic Actuated

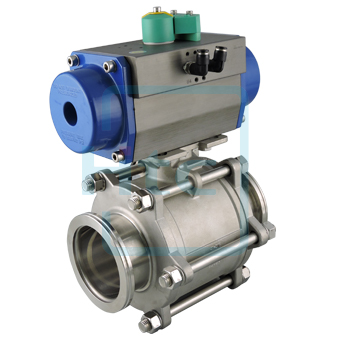

ISO-K Ball Valve - Double Pneumatic Actuated

Warranty conditions :

1. The period of warranty shall start from the date of delivery of the product to the customer and shall cover a period of 1 year, or the specific life cycles, whichever comes first.

2. Operation only in air, inert gas and vacuum.

3. Warranty will not apply to the damages caused by nature disasters, faulty usages or consumable purposes.

Welcome to contact us , Htc Vacuum is willing to provide solutions for you.

In vacuum industry, ball valves are durable and usually work to achieve perfect shutoff. A ball valve is a vacuum valve with a ball in the central part of the valve, the ball controls the flow through it. The ball has a hole, or port, through the middle so that when the port is in line with both ends of the valve, flow will occur. When the valve is closed, the hole is perpendicular to the ends of the valve, and flow is blocked. The handle or lever will be inline with the port position letting you "see" the valve's position when the valve is fully open. The ball valve, along with the butterfly valve, are part of the family of quarter turn valves.

Ball valve’s simple, rugged structure provides high reliability in “dirty” vacuum application. For example, they are always used to isolate traps and scrubbers downstream from the chamber or vacuum pump in the process equipment. Ball valves also are suitable for isolating gauges, vacuum roughing lines, food processing lines and many other industrial applications.

Htc vacuum’s ball valves have manual, pneumatic and electric actuators for various customers; custom design is available upon request, please contact us.
