KF Ball Valve - Motor Drive
Vacuum Ball Valves
| select | |||
| Model No. | KF25BV107E | KF40BV130E | KF50BV151E |
| Parts No. | 320111310113A | 320113310113A | 320114310113A |
| A | 231 | 258 | 318 |
| B | 107 | 130 | 151 |
| C | 114 | 119 | 114 |
| D | 79 | 79 | 57 |
| Connector | KF25 | KF40 | KF50 |
| Size"(mm) | 1"(25.4) | 1.5"(38.1) | 2"(50.8) |
| Select | Model No. | Parts No. | A | B | C | D | Connector | Size"(mm) |
| KF25BV107E | 320111310113A | 231 | 107 | 114 | 79 | KF25 | 1"(25.4) | |
| KF40BV130E | 320113310113A | 258 | 130 | 119 | 79 | KF40 | 1.5"(38.1) | |
| KF50BV151E | 320114310113A | 318 | 151 | 114 | 57 | KF50 | 2"(50.8) |

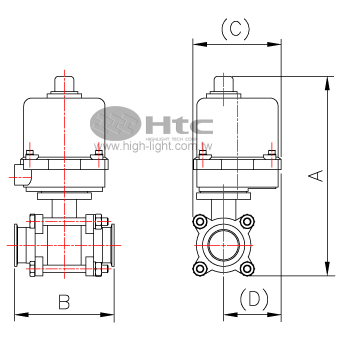

SolidWorks 2D & 3D model drawings
| Model No. | KF25BV107E | KF40BV130E | KF50BV151E |
| Parts No. | 320111310113A | 320113310113A | 320114310113A |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP |
Note: Please [Right click] and select [Save link as]. Wait a moment and the archive window appears.
KF BALL VALVE - Motor Drive Specifications
- Valve size for 1” to 2”
- Flange：KF(NW)
- Pressure Range： 2atm ~ 1x10-4 Torr
- Leak rate: 9x10-7 mbar.l/s
- Wetted materials：SUS316 , PTFE
- Max temperature ：Electric drive 80°C / Body 100°C
- Time to fall open：50Hz-13sec , 60Hz-12sec
- The last letter of the P/N represents the Motor Voltage : A=AC 110V , B= AC 220V , C=AC 220 3ϕ , D=AC 380 3ϕ
- Option ：Limit switch
