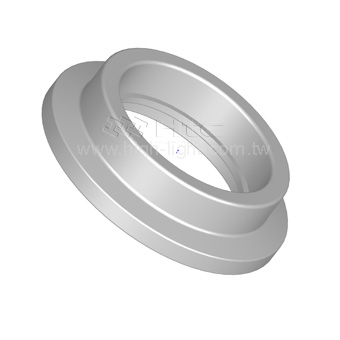

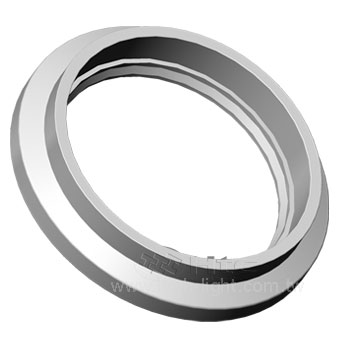

KF Flange

KF components Features

• The typical KF or NW assembly consists of two identical flanges, a center-ring, and an aluminum clamp with a wingnut fastener frequently connect and disconnect without tools.
• The vacuum seal is effected by uniform application of pressure by the clamp on 15^o surface of the flange.
• The mating flange surfaces compress an O’ring (held in place by metal centering ring) to generate a seal.

Specifications

• Blanks: 304 S.S. (Other material available upon request)
• Flanges: 304 S.S. (Other material available upon request)
• Fittings: 304 S.S. (Other material available upon request)
• Clamp: Aluminum , Stainless Steel
• O’ring material: Viton or NBR
• Temperature Range: 150^oC (Viton) 80^oC (NBR)
• Vacuum Rate: 10^-8 mbar
• Larger or special size available upon request
