L-motion Large Rectangular Transfer gate valves (L-motion Large Slit valves)
Dimension
Technical Data
|
Name |
Rectangle Transfer Valve- 50x1700 |
|
Open Size |
50 x 1700 mm |
|
Material |
Body, Gate plate ： 304 S.S. |
|
Leak rate |
Body < 1x10-9 mbar. l/sec |
|
Pressure Range |
1x10-8 mbar to 1 bar |
|
Driving Shaft |
Option: Bellows |
|
Differential pressure on the gate |
Positive pressure difference ≦ 1 bar |
|
Differential pressure at opening |
< 13 mbar |
|
Temperature |
Body & gate plate < 90℃ |
|
Compress air pressure |
Pneumatic 5~6 Kg/cm² |
|
Standard Seal |
Gate O-ring : Viton |
|
Opening/Close sensor |
DC4-24(V)) or AC4-240(V), Amps:5-40 mA |
|
Solenoid Power (Optional) |
DC24(V) ,AC24(V),AC110(V),AC220(V) |
|
Opening/Close time |
open time ≦ 5 sec |
|
Cycle life (*) |
1,000,000 cycle |
|
Mounting position |
Actuator up, down |
* The Cycle life of valve is apply to room temperature 25°C and clean environment, and the opening action apply to be less than 13 mbar pressure difference. (If the opening action exceeds the pressure difference of 13 mbar, it is not covered by this guarantee.)

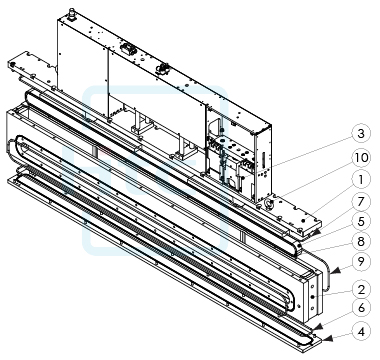

Functional principle
 |
|
