ISO法蘭氣動雙動無波紋管
大型角閥閥門
.jpg)
.jpg)
-D.jpg)
| select | ||||
| Model No. | AV-ISO100-P2 | AV-ISO160-P2 | AV-ISO200-P2 | AV-ISO250-P2 |
| Parts No. | 300118240010 | 300120240010 | 300121240010 | 300122240010 |
| A | 113.5 | 159 | 209.5 | 260.6 |
| B | 352.1 | 432.5 | 623.6 | 641.5 |
| C | 151.6 | 240 | 250 | 325 |
| O.D. | 101.6 | 152.4 | 203.2 | 254 |
| Select | Model No. | Parts No. | A | B | C | O.D. |
| AV-ISO100-P2 | 300118240010 | 113.5 | 352.1 | 151.6 | 101.6 | |
| AV-ISO160-P2 | 300120240010 | 159 | 432.5 | 240 | 152.4 | |
| AV-ISO200-P2 | 300121240010 | 209.5 | 623.6 | 250 | 203.2 | |
| AV-ISO250-P2 | 300122240010 | 260.6 | 641.5 | 325 | 254 |

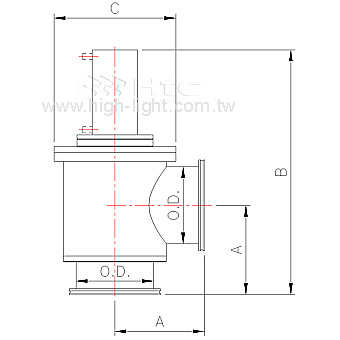

氣動無波紋管
適用區域：U.S.A.
雙動-氣開, 氣關
端口連接：ISO 法蘭
SolidWorks 2D & 3D 產品圖稿
| Model No. | AV-ISO100-P2 | AV-ISO160-P2 | AV-ISO200-P2 | AV-ISO250-P2 |
| Parts No. | 300118240010 | 300120240010 | 300121240010 | 300122240010 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP |
注意: 請按【滑鼠右鍵】選擇【另存新檔】或【另存連結為】, 需稍等一下即出現存檔視窗。
