CF法蘭手動無波紋管
大型角閥閥門
select | |||

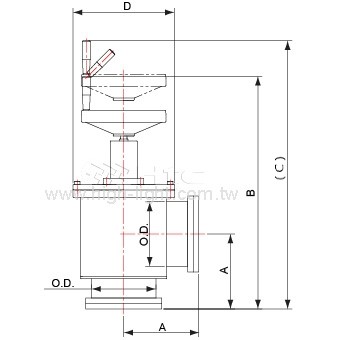

Model No. | AV-CR100-M | AV-CR150-M | AV-CR200-M |
Parts No. | 300118030010 | 300120030010 | 300121030010 |
A | 118 | 165.1 | 215.6 |
B | 423.8 | 537.5 | 674.2 |
C | 501.8 | 612.5 | 804.2 |
D | 151.6 | 240 | 250 |
O.D. | 101.6 | 152.4 | 203.2 |
Select | Model No. | Parts No. | A | B | C | D | O.D. |
AV-CR100-M | 300118030010 | 118 | 423.8 | 501.8 | 151.6 | 101.6 | |
AV-CR150-M | 300120030010 | 165.1 | 537.5 | 612.5 | 240 | 152.4 | |
AV-CR200-M | 300121030010 | 215.6 | 674.2 | 804.2 | 250 | 203.2 |
