CF法蘭氣動雙動無波紋管
大型角閥閥門
.jpg)
.jpg)
| select | |||||
| Model No. | AV-CR100-P2 | AV-CR150-P2 | AV-CR200-P2 | AV-CR250-P2 | AV-CR100-P2-E |
| Parts No. | 300118230010 | 300120230010 | 300121230010 | 300122230010 | 310118230010 |
| A | 118 | 165.1 | 215.6 | 266.7 | 135 |
| B | 356.6 | 438.6 | 629.7 | 647.6 | 373.6 |
| C | 151.6 | 240 | 250 | 325 | 151.6 |
| O.D. | 101.6 | 152.4 | 203.2 | 254 | 101.6 |
| Available area | U.S.A | U.S.A | U.S.A | U.S.A | Europe |
| Select | Model No. | Parts No. | A | B | C | O.D. | Available area |
| AV-CR100-P2 | 300118230010 | 118 | 356.6 | 151.6 | 101.6 | U.S.A | |
| AV-CR150-P2 | 300120230010 | 165.1 | 438.6 | 240 | 152.4 | U.S.A | |
| AV-CR200-P2 | 300121230010 | 215.6 | 629.7 | 250 | 203.2 | U.S.A | |
| AV-CR250-P2 | 300122230010 | 266.7 | 647.6 | 325 | 254 | U.S.A | |
| AV-CR100-P2-E | 310118230010 | 135 | 373.6 | 151.6 | 101.6 | Europe |
氣動真空閥門
適用區域：U.S.A. / Europe
無波紋管，氣動雙動
端口連接：CF法蘭

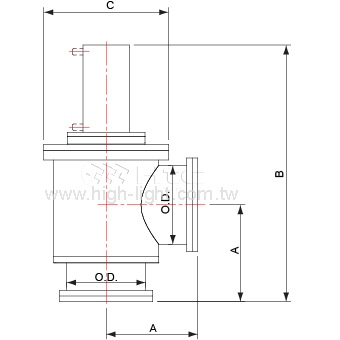

注意：此頁面上顯示的所有尺寸均以英寸（mm）為單位SolidWorks 2D & 3D 產品圖稿
| Model No. | AV-CR100-P2 | AV-CR150-P2 | AV-CR200-P2 | AV-CR250-P2 | AV-CR100-P2-E |
| Parts No. | 300118230010 | 300120230010 | 300121230010 | 300122230010 | 310118230010 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP |
注意: 請按【滑鼠右鍵】選擇【另存新檔】或【另存連結為】, 需稍等一下即出現存檔視窗。
