全金属角阀阀门
全金属阀门 All-Metal Valve
select | |||

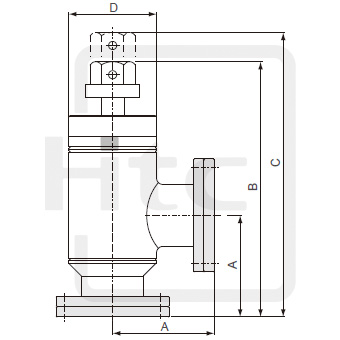

Model No. | AVBAK-CR16-M | AVBAK-CR35-M | AVBAK-CR63-M |
Parts No. | 300509030011 | 300513030011 | 300515030011 |
A | 38.1 | 62.5 | 105 |
B | 121.2 | 170 | 266 |
C | 131 | 187 | 294 |
D | 38.1 | 54 | 76.2 |
O.D. | 19.05 | 38.1 | 63.5 |
Select | Model No. | Parts No. | A | B | C | D | O.D. |
AVBAK-CR16-M | 300509030011 | 38.1 | 121.2 | 131 | 38.1 | 19.05 | |
AVBAK-CR35-M | 300513030011 | 62.5 | 170 | 187 | 54 | 38.1 | |
AVBAK-CR63-M | 300515030011 | 105 | 266 | 294 | 76.2 | 63.5 |
