APC自动压力控制阀有EtherCAT通讯系统-CF法兰型

Model No.

CF35BFVC/EtherCat/12bit

CF35BFVC/EtherCat/24bit

CF63BFVC/EtherCat/12bit

CF63BFVC/EtherCat/24bit

CF100BFVC/EtherCat/12bit

CF100BFVC/EtherCat/24bit

CF150BFVC/EtherCat/12bit

CF150BFVC/EtherCat/24bit

Parts No.

320213110221A

320213110221H

320215110221A

320215110221H

320218110221A

320218110221H

320220110221A

320220110221H

A

30

35

30

40

B

4.5

16

36.5

57

C

4.5

16

36.5

57

D

69.5

113.5

151.6

202.5

E

229

260.5

279

416

F

264

314

351

514.5

G

90

110

H

130

140

I x No

M6*6

M8*8

M8*16

M8*20

P.C.D.

58.7

92.1

130.3

181

Thread Depth

12L

15L

APC蝶阀-CF法兰型

APC 蝶阀-EtherCAT通讯

select

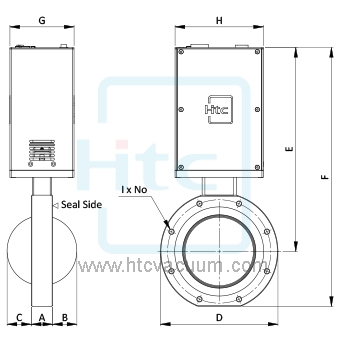

Model No.	CF35BFVC/EtherCat/12bit	CF35BFVC/EtherCat/24bit	CF63BFVC/EtherCat/12bit	CF63BFVC/EtherCat/24bit	CF100BFVC/EtherCat/12bit	CF100BFVC/EtherCat/24bit	CF150BFVC/EtherCat/12bit	CF150BFVC/EtherCat/24bit
Parts No.	320213110221A	320213110221H	320215110221A	320215110221H	320218110221A	320218110221H	320220110221A	320220110221H
A	30	30	35	35	30	30	40	40
B	4.5	4.5	16	16	36.5	36.5	57	57
C	4.5	4.5	16	16	36.5	36.5	57	57
D	69.5	69.5	113.5	113.5	151.6	151.6	202.5	202.5
E	229	229	260.5	260.5	279	279	416	416
F	264	264	314	314	351	351	514.5	514.5
G	90	90	90	90	90	90	110	110
H	130	130	130	130	130	130	140	140
I x No	M6*6	M6*6	M8*8	M8*8	M8*16	M8*16	M8*20	M8*20
P.C.D.	58.7	58.7	92.1	92.1	130.3	130.3	181	181
Thread Depth	12L	12L	12L	12L	12L	12L	15L	15L
