KF气动球阀 (双动)
真空球阀
| select | |||
| Model No. | KF25BV107P2 | KF40BV130P2 | KF50BV151P2 |
| Parts No. | 3201113101133 | 3201133101133 | 3201143101133 |
| A | 173 | 216 | 247 |
| B | 107 | 130 | 151 |
| C | 71 | 88 | 99 |
| D | 41.5 | 48 | 51.5 |
| Connector | KF25 | KF40 | KF50 |
| Size"(mm) | 1"(25.4) | 1.5"(38.1) | 2"(50.8) |
| Select | Model No. | Parts No. | A | B | C | D | Connector | Size"(mm) |
| KF25BV107P2 | 3201113101133 | 173 | 107 | 71 | 41.5 | KF25 | 1"(25.4) | |
| KF40BV130P2 | 3201133101133 | 216 | 130 | 88 | 48 | KF40 | 1.5"(38.1) | |
| KF50BV151P2 | 3201143101133 | 247 | 151 | 99 | 51.5 | KF50 | 2"(50.8) |

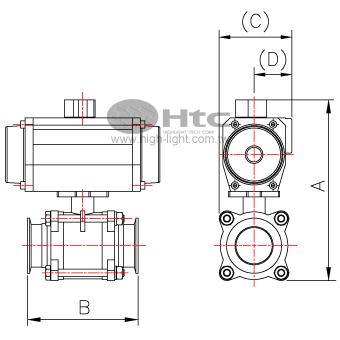

SolidWorks 2D & 3D 产品图稿
| Model No. | KF25BV107P2 | KF40BV130P2 | KF50BV151P2 |
| Parts No. | 3201113101133 | 3201133101133 | 3201143101133 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP |
注意: 请按【鼠标右键】选择【另存新档】或【另存连结为】, 需稍等一下即出现存盘窗口。
真空法兰球阀 - 气动球阀 (双动)
air to open, air to close
- 阀尺寸: 1” to 2”
- 法兰：KF(NW)
- 压力范围： 2atm ~ 1x10-4 Torr
- 泄漏率: 9x10-7 mbar.l/s
- 材质：316S.S. , PTFE
- 最高温度 ：Cylinder 80°C / Body 100°C
- 空气压缩连接头: KF25-2x 1/8”NPT , KF40~KF50-2x 1/4”NPT
- 选项：限位开关，电磁阀
- 气体压力 : 4-7 kg/cm2
