德规法兰(DIN) - NP10
美规、日规、德规法兰
| select | |||||||||||||

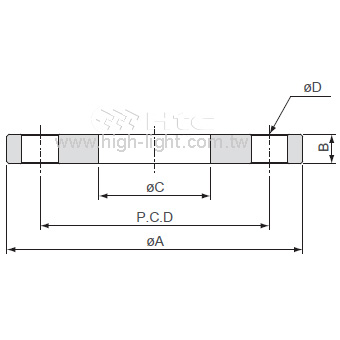

| Model No. | DIN10-090-010 | DIN10-095-015 | DIN10-105-020 | DIN10-115-025 | DIN10-140-032 | DIN10-150-040 | DIN10-165-050 | DIN10-185-065 | DIN10-200-080 | DIN10-220-100 | DIN10-250-125 | DIN10-285-150 | DIN10-340-200 |
| Parts No. | 158400A33 | 158401A43 | 158402A53 | 158403A63 | 158423A73 | 158405A83 | 158406A93 | 158407B13 | 158408B23 | 158409B43 | 158410B53 | 158411B63 | 158413B73 |
| A | 90 | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 |
| B | 14 | 14 | 16 | 16 | 16 | 16 | 18 | 18 | 20 | 20 | 22 | 22 | 24 |
| C | 17.7 | 21.8 | 27.4 | 34.2 | 42.9 | 48.8 | 60.8 | 76.6 | 89.4 | 114.8 | 140.2 | 168.8 | 220.1 |
| D*No. | 14*4 | 14*4 | 14*4 | 14*4 | 18*4 | 18*4 | 18*4 | 18*4 | 18*4 | 18*8 | 18*8 | 23*8 | 23*8 |
| Nominal | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| P.C.D. | 60 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 |
| Select | Model No. | Parts No. | A | B | C | D*No. | Nominal | P.C.D. |
| DIN10-090-010 | 158400A33 | 90 | 14 | 17.7 | 14*4 | 10 | 60 | |
| DIN10-095-015 | 158401A43 | 95 | 14 | 21.8 | 14*4 | 15 | 65 | |
| DIN10-105-020 | 158402A53 | 105 | 16 | 27.4 | 14*4 | 20 | 75 | |
| DIN10-115-025 | 158403A63 | 115 | 16 | 34.2 | 14*4 | 25 | 85 | |
| DIN10-140-032 | 158423A73 | 140 | 16 | 42.9 | 18*4 | 32 | 100 | |
| DIN10-150-040 | 158405A83 | 150 | 16 | 48.8 | 18*4 | 40 | 110 | |
| DIN10-165-050 | 158406A93 | 165 | 18 | 60.8 | 18*4 | 50 | 125 | |
| DIN10-185-065 | 158407B13 | 185 | 18 | 76.6 | 18*4 | 65 | 145 | |
| DIN10-200-080 | 158408B23 | 200 | 20 | 89.4 | 18*4 | 80 | 160 | |
| DIN10-220-100 | 158409B43 | 220 | 20 | 114.8 | 18*8 | 100 | 180 | |
| DIN10-250-125 | 158410B53 | 250 | 22 | 140.2 | 18*8 | 125 | 210 | |
| DIN10-285-150 | 158411B63 | 285 | 22 | 168.8 | 23*8 | 150 | 240 | |
| DIN10-340-200 | 158413B73 | 340 | 24 | 220.1 | 23*8 | 200 | 295 |
