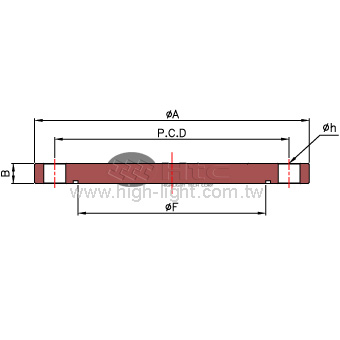

ANSI ASA 盲板有O型环槽
ANSI ASA 法兰
| select | |||||||||
| Model No. | ASA4GB | ASA5GB | ASA6GB | ASA7GB | ASA9GB | ASA11GB | ASA13GB | ASA16GB | ASA19GB |
| Parts No. | 156E03003 | 156E05003 | 156E06003 | 156E08003 | 156E09003 | 156E11003 | 156E13003 | 156E14003 | 156E15003 |
| A | 108(4.25) | 127(5) | 152.4(6) | 190.5(7.5) | 228.6(9) | 279.4(11) | 342.9(13.5) | 406.4(16) | 482.6(19) |
| B | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 19 | 19 | 25.4 | 27 |
| F | 47.5 | 63.5 | 88.9 | 117.6 | 152.8 | 203.8 | 254.8 | 306 | 382.5 |
| h*No | 15.8*4 | 15.8*4 | 19*4 | 19*4 | 19*8 | 20.6*8 | 20.6*8 | 20.6*12 | 25.4*12 |
| ANSI size | 1 | 1.5 | 2 | 3 | 4 | 6 | 8 | 10 | 12 |
| P.C.D. | 79.4 | 98.4 | 120.6 | 152.4 | 190.5 | 241.3 | 298.5 | 362 | 431.8 |
| Select | Model No. | Parts No. | A | B | F | h*No | ANSI size | P.C.D. |
| ASA4GB | 156E03003 | 108(4.25) | 12.7 | 47.5 | 15.8*4 | 1 | 79.4 | |
| ASA5GB | 156E05003 | 127(5) | 12.7 | 63.5 | 15.8*4 | 1.5 | 98.4 | |
| ASA6GB | 156E06003 | 152.4(6) | 12.7 | 88.9 | 19*4 | 2 | 120.6 | |
| ASA7GB | 156E08003 | 190.5(7.5) | 12.7 | 117.6 | 19*4 | 3 | 152.4 | |
| ASA9GB | 156E09003 | 228.6(9) | 12.7 | 152.8 | 19*8 | 4 | 190.5 | |
| ASA11GB | 156E11003 | 279.4(11) | 19 | 203.8 | 20.6*8 | 6 | 241.3 | |
| ASA13GB | 156E13003 | 342.9(13.5) | 19 | 254.8 | 20.6*8 | 8 | 298.5 | |
| ASA16GB | 156E14003 | 406.4(16) | 25.4 | 306 | 20.6*12 | 10 | 362 | |
| ASA19GB | 156E15003 | 482.6(19) | 27 | 382.5 | 25.4*12 | 12 | 431.8 |
