六通素管
六通管Cube正立方体系列
| select | ||||||||

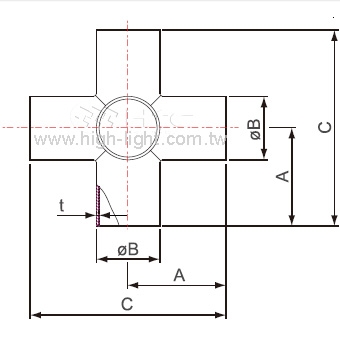

| Model No. | 16SXA | 25SXA | 40SXA | 50SXA | 63SXA | 80SXA | 100SXA | 150SXA |
| Parts No. | 16280020024 | 16280030034 | 16280050054 | 16280060064 | 16280070074 | 16280080084 | 16280090094 | 16280110114 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 34.5 | 47.6 | 57.2 | 76.2 | 76.2 | 82.5 | 98.4 | 127 |
| B | 19.05 | 25.4 | 38.1 | 50.8 | 63.5 | 76.2 | 101.6 | 152.4 |
| C | 69 | 95.2 | 114.3 | 152.4 | 152.4 | 165.1 | 196.8 | 254 |
| t | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 2 | 2.7 |
| Select | Model No. | Parts No. | Material | A | B | C | t |
| 16SXA | 16280020024 | 304 S.S. | 34.5 | 19.05 | 69 | 1.65 | |
| 25SXA | 16280030034 | 304 S.S. | 47.6 | 25.4 | 95.2 | 1.65 | |
| 40SXA | 16280050054 | 304 S.S. | 57.2 | 38.1 | 114.3 | 1.65 | |
| 50SXA | 16280060064 | 304 S.S. | 76.2 | 50.8 | 152.4 | 1.65 | |
| 63SXA | 16280070074 | 304 S.S. | 76.2 | 63.5 | 152.4 | 1.65 | |
| 80SXA | 16280080084 | 304 S.S. | 82.5 | 76.2 | 165.1 | 1.65 | |
| 100SXA | 16280090094 | 304 S.S. | 98.4 | 101.6 | 196.8 | 2 | |
| 150SXA | 16280110114 | 304 S.S. | 127 | 152.4 | 254 | 2.7 |
