ISO法兰单管夹
ISO法兰卡箍卡钳系列
| select | ||||||||||||||||||

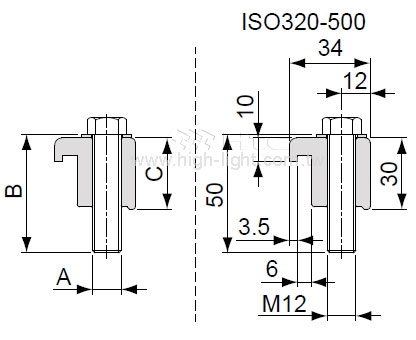

| Model No. | ISO63-100SWC304 | ISO63-100SWC304 | ISO63-100SWC304 | ISO160-250SWC304 | ISO160-250SWC304 | ISO160-250SWC304 | ISO320-500SWC304 | ISO320-500SWC304 | ISO320-500SWC304 | ISO63-100SWC-ZP | ISO63-100SWC-ZP | ISO63-100SWC-ZP | ISO160-250SWC-ZP | ISO160-250SWC-ZP | ISO160-250SWC-ZP | ISO320-500SWC-ZP | ISO320-500SWC-ZP | ISO320-500SWC-ZP |
| Parts No. | 2121A241 | 2121A241 | 2121A241 | 2121A441 | 2121A441 | 2121A441 | 2121A541 | 2121A541 | 2121A541 | 2121A231 | 2121A231 | 2121A231 | 2121A431 | 2121A431 | 2121A431 | 2121A531 | 2121A531 | 2121A531 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | Steel+Zn Plated | Steel+Zn Plated | Steel+Zn Plated | Steel+Zn Plated | Steel+Zn Plated | Steel+Zn Plated | Steel+Zn Plated | Steel+Zn Plated | Steel+Zn Plated |
| A | M8 | M8 | M8 | M10 | M10 | M10 | M12 | M12 | M12 | M8 | M8 | M8 | M10 | M10 | M10 | M12 | M12 | M12 |
| B | 35 | 35 | 35 | 35 | 35 | 35 | 50 | 50 | 50 | 35 | 35 | 35 | 35 | 35 | 35 | 50 | 50 | 50 |
| C | 23 | 23 | 23 | 23 | 23 | 23 | 30 | 30 | 30 | 23 | 23 | 23 | 23 | 23 | 23 | 30 | 30 | 30 |
| Fit Flange | ISO63 | ISO80 | ISO100 | ISO160 | ISO200 | ISO250 | ISO400 | ISO320 | ISO500 | ISO63 | ISO80 | ISO100 | ISO160 | ISO200 | ISO250 | ISO320 | ISO400 | ISO500 |
| Select | Model No. | Parts No. | Material | A | B | C | Fit Flange |
| ISO63-100SWC304 | 2121A241 | 304 S.S. | M8 | 35 | 23 | ISO63 | |
| ISO63-100SWC304 | 2121A241 | 304 S.S. | M8 | 35 | 23 | ISO80 | |
| ISO63-100SWC304 | 2121A241 | 304 S.S. | M8 | 35 | 23 | ISO100 | |
| ISO160-250SWC304 | 2121A441 | 304 S.S. | M10 | 35 | 23 | ISO160 | |
| ISO160-250SWC304 | 2121A441 | 304 S.S. | M10 | 35 | 23 | ISO200 | |
| ISO160-250SWC304 | 2121A441 | 304 S.S. | M10 | 35 | 23 | ISO250 | |
| ISO320-500SWC304 | 2121A541 | 304 S.S. | M12 | 50 | 30 | ISO400 | |
| ISO320-500SWC304 | 2121A541 | 304 S.S. | M12 | 50 | 30 | ISO320 | |
| ISO320-500SWC304 | 2121A541 | 304 S.S. | M12 | 50 | 30 | ISO500 | |
| ISO63-100SWC-ZP | 2121A231 | Steel+Zn Plated | M8 | 35 | 23 | ISO63 | |
| ISO63-100SWC-ZP | 2121A231 | Steel+Zn Plated | M8 | 35 | 23 | ISO80 | |
| ISO63-100SWC-ZP | 2121A231 | Steel+Zn Plated | M8 | 35 | 23 | ISO100 | |
| ISO160-250SWC-ZP | 2121A431 | Steel+Zn Plated | M10 | 35 | 23 | ISO160 | |
| ISO160-250SWC-ZP | 2121A431 | Steel+Zn Plated | M10 | 35 | 23 | ISO200 | |
| ISO160-250SWC-ZP | 2121A431 | Steel+Zn Plated | M10 | 35 | 23 | ISO250 | |
| ISO320-500SWC-ZP | 2121A531 | Steel+Zn Plated | M12 | 50 | 30 | ISO320 | |
| ISO320-500SWC-ZP | 2121A531 | Steel+Zn Plated | M12 | 50 | 30 | ISO400 | |
| ISO320-500SWC-ZP | 2121A531 | Steel+Zn Plated | M12 | 50 | 30 | ISO500 |
