ISO-KF法兰管接头
法兰对法兰连接头
| select | |||||||

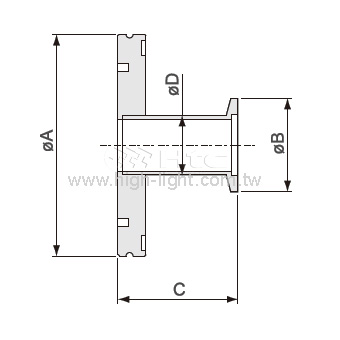

| Model No. | ISO63KA25 | ISO63KA40 | ISO63KA50 | ISO80KA40 | ISO80KA50 | ISO100KA40 | ISO100KA50 |
| Parts No. | 17020701072 | 17020701092 | 17020701122 | 17020801092 | 17020801122 | 17020901092 | 17020901122 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 95 | 95 | 95 | 110 | 110 | 130 | 130 |
| B | 40 | 55 | 75 | 55 | 75 | 55 | 75 |
| C | 42 | 42 | 42 | 42 | 42 | 42 | 42 |
| D | 25.4 | 38.1 | 50.8 | 38.1 | 50.8 | 38.1 | 50.8 |
| Select | Model No. | Parts No. | Material | A | B | C | D |
| ISO63KA25 | 17020701072 | 304 S.S. | 95 | 40 | 42 | 25.4 | |
| ISO63KA40 | 17020701092 | 304 S.S. | 95 | 55 | 42 | 38.1 | |
| ISO63KA50 | 17020701122 | 304 S.S. | 95 | 75 | 42 | 50.8 | |
| ISO80KA40 | 17020801092 | 304 S.S. | 110 | 55 | 42 | 38.1 | |
| ISO80KA50 | 17020801122 | 304 S.S. | 110 | 75 | 42 | 50.8 | |
| ISO100KA40 | 17020901092 | 304 S.S. | 130 | 55 | 42 | 38.1 | |
| ISO100KA50 | 17020901122 | 304 S.S. | 130 | 75 | 42 | 50.8 |
