CF伸缩波纹管-单边法兰可旋转
伸缩真空波纹管
| select | ||||||||||||||||
| Model No. | CF16FX250R | CF16FX500R | CF16FX750R | CF16FX1000R | CF35FX250R | CF35FX500R | CF35FX750R | CF35FX1000R | CF63FXC250R | CF63FXC500R | CF63FXC750R | CF63FXC1000R | CF100FXC250R | CF100FXC500R | CF100FXC750R | CF100FXC1000R |
| Parts No. | 40010550250FH | 40010550500FH | 40010550750FH | 40010551000FH | 40010570250FH | 40010570500FH | 40010570750FH | 40010571000FH | 40310670250FH | 40310670500FH | 40310670750FH | 40310671000FH | 40310690250FH | 40310690500FH | 40310690750FH | 40310691000FH |
| Material | 304 S.S. | 304 S.S. | 304 S,S, | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |

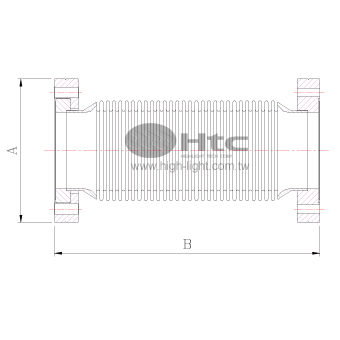

| A | 33.8 | 33.8 | 33.8 | 33.8 | 69.5 | 69.5 | 69.5 | 69.5 | 113.6 | 113.6 | 113.6 | 113.6 | 151.6 | 151.6 | 151.6 | 151.6 |
| B | 250 | 500 | 750 | 1000 | 250 | 500 | 750 | 1000 | 250 | 500 | 750 | 1000 | 250 | 500 | 750 | 1000 |
| Select | Model No. | Parts No. | Material | A | B |
| CF16FX250R | 40010550250FH | 304 S.S. | 33.8 | 250 | |
| CF16FX500R | 40010550500FH | 304 S.S. | 33.8 | 500 | |
| CF16FX750R | 40010550750FH | 304 S,S, | 33.8 | 750 | |
| CF16FX1000R | 40010551000FH | 304 S.S. | 33.8 | 1000 | |
| CF35FX250R | 40010570250FH | 304 S.S. | 69.5 | 250 | |
| CF35FX500R | 40010570500FH | 304 S.S. | 69.5 | 500 | |
| CF35FX750R | 40010570750FH | 304 S.S. | 69.5 | 750 | |
| CF35FX1000R | 40010571000FH | 304 S.S. | 69.5 | 1000 | |
| CF63FXC250R | 40310670250FH | 304 S.S. | 113.6 | 250 | |
| CF63FXC500R | 40310670500FH | 304 S.S. | 113.6 | 500 | |
| CF63FXC750R | 40310670750FH | 304 S.S. | 113.6 | 750 | |
| CF63FXC1000R | 40310671000FH | 304 S.S. | 113.6 | 1000 | |
| CF100FXC250R | 40310690250FH | 304 S.S. | 151.6 | 250 | |
| CF100FXC500R | 40310690500FH | 304 S.S. | 151.6 | 500 | |
| CF100FXC750R | 40310690750FH | 304 S.S. | 151.6 | 750 | |
| CF100FXC1000R | 40310691000FH | 304 S.S. | 151.6 | 1000 |
